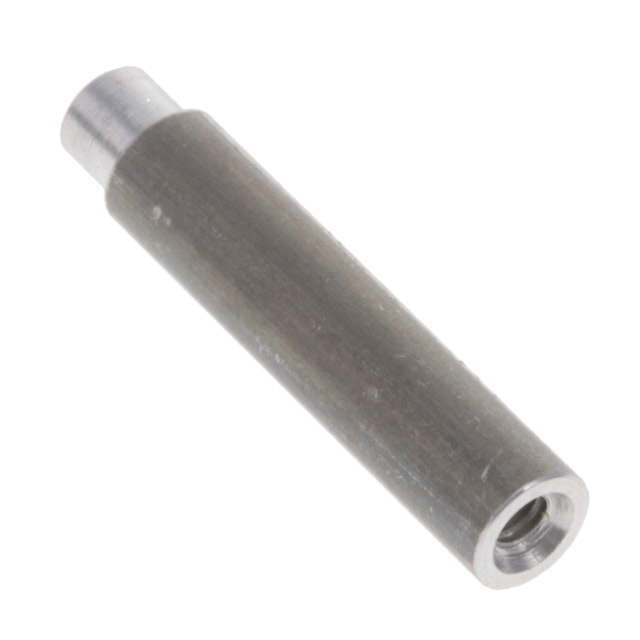

3024-B-256-AL
ActiveRAF Electronic Hardware
5/32_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
Search across all available documentation for this part.
3024-B-256-AL
ActiveRAF Electronic Hardware
5/32_ROUND_SWAGE_STANDOFFS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3024-B-256-AL |
|---|---|
| Between Board Height | 0.688 in |
| Between Board Height | 17.46 mm |
| Diameter - Outside [diameter] | 0.156 in |
| Diameter - Outside [diameter] | 3.97 mm |
| Gender | Swage, Female |
| Length - Overall [x] | 0.793 in |
| Length - Overall [x] | 20.13 mm |
| Material | Aluminum |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.19 | |
| 5 | $ 14.78 | |||
| 10 | $ 14.37 | |||
| 25 | $ 13.55 | |||
| 50 | $ 13.14 | |||
| 100 | $ 12.32 | |||
| 250 | $ 11.49 | |||
| 500 | $ 11.08 | |||
Description
General part information
3024-B Series
Round Standoff Threaded #2-56 Aluminum 0.688" (17.46mm)
Documents
Technical documentation and resources
No documents available
