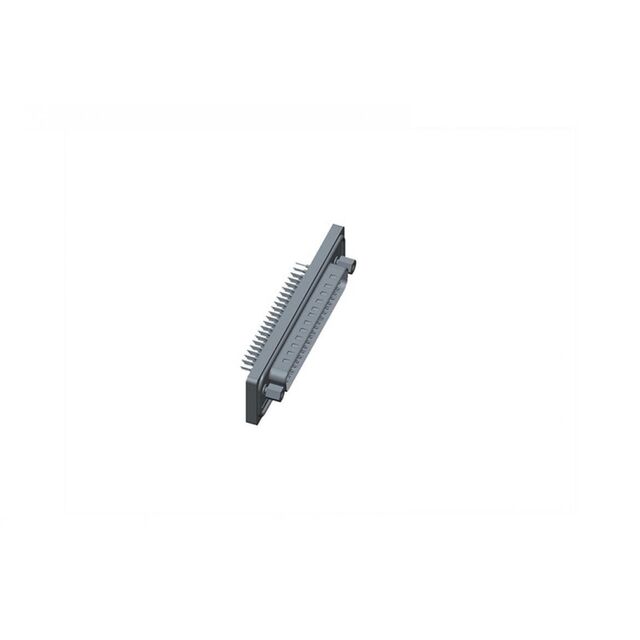

HDB-62PMMP-SL7001
ActiveAmphenol LTW
D-SUB, HIGH DENSITY, 2A, 62 PINS, RECEPTACLE, STRAIGHT WITHOUT BOARD LOCK ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
HDB-62PMMP-SL7001
ActiveAmphenol LTW
D-SUB, HIGH DENSITY, 2A, 62 PINS, RECEPTACLE, STRAIGHT WITHOUT BOARD LOCK ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB-62PMMP-SL7001 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HDB-62PMMP Series
62 Position D-Sub, High Density Plug, Male Pins Connector
