LFE2M70E-5FN1152I

LATTICE SEMICONDUCTOR

IC FPGA 436 I/O 1152FBGA

Search across all available documentation for this part.

LATTICE SEMICONDUCTOR

IC FPGA 436 I/O 1152FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LFE2M70E-5FN1152I

Mounting Type	Surface Mount
Number of I/O	436
Number of LABs/CLBs	8375
Number of Logic Elements/Cells	67000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C

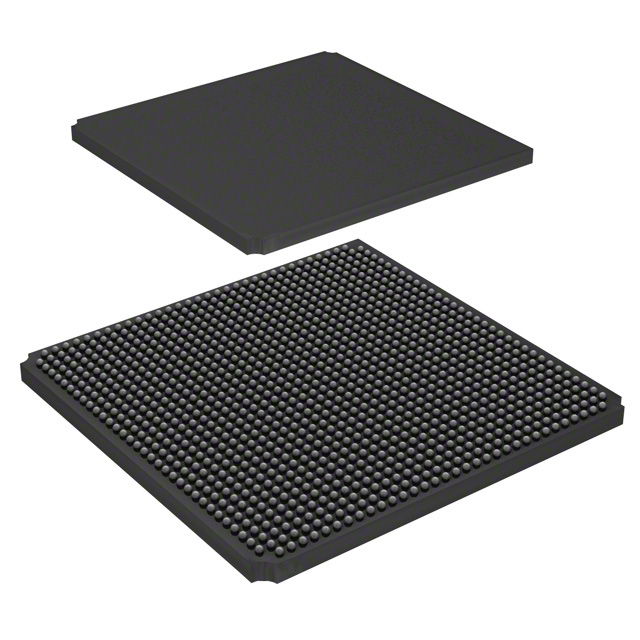

Package / Case	1152-BBGA
Supplier Device Package	1152-FPBGA (35x35)
Total RAM Bits	4642816 bits

Part	Number of Logic Elements/Cells	Package / Case	Supplier Device Package	Number of LABs/CLBs	Total RAM Bits	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
LATTICE SEMICONDUCTOR LFE2M70E-6FN900C	67000	900-BBGA	900-FPBGA (31x31)	8375	4642816 bits	416	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70E-6FN900I	67000	900-BBGA	900-FPBGA (31x31)	8375	4642816 bits	416	-40 C	100 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70SE-5F900C	67000	900-BBGA	900-FPBGA (31x31)	8375	4642816 bits	416	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70E-5FN1152C	67000	1152-BBGA	1152-FPBGA (35x35)	8375	4642816 bits	436	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70E-6FN1152C	67000	1152-BBGA	1152-FPBGA (35x35)	8375	4642816 bits	436	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70E-5FN900C	67000	900-BBGA	900-FPBGA (31x31)	8375	4642816 bits	416	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70SE-6FN1152C	67000	1152-BBGA	1152-FPBGA (35x35)	8375	4642816 bits	436	0 °C	85 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70E-5FN1152I	67000	1152-BBGA	1152-FPBGA (35x35)	8375	4642816 bits	436	-40 C	100 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70SE-5FN1152I	67000	1152-BBGA	1152-FPBGA (35x35)	8375	4642816 bits	436	-40 C	100 °C	Surface Mount
LATTICE SEMICONDUCTOR LFE2M70SE-6FN900C	67000	900-BBGA	900-FPBGA (31x31)	8375	4642816 bits	416	0 °C	85 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	240	$ 384.61
Newark	Each	25	$ 387.57

General part information

ECP2M Field Programmable Gate Array (FPGA) IC 436 4642816 67000 1152-BBGA
