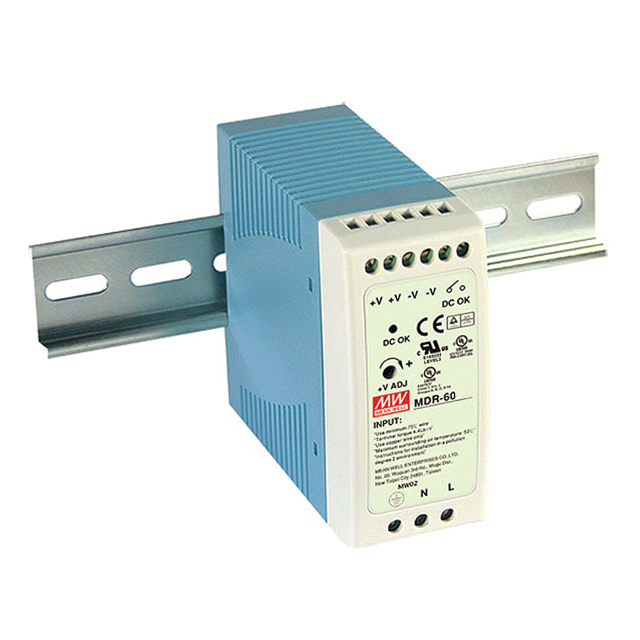

MDR-60-12

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 12V 60W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	MDR-60-12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cURus, TUV, CB, cULus, CE
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	86 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.57 "
Size / Dimension [y]	40 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Applications	Minimum Load Required	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Features	Current - Output (Max) [Max]	Input Type	Efficiency	Power (Watts)	Voltage - Isolation	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]
MEAN WELL USA Inc. MDR-60-5	Hazardous Locations Industrial ITE (Commercial)		90 mm	100 mm	3.94 in	1.57 "	40 mm	3.54 "	1	Adjustable Output Universal Input	10 A	AC or DC	78 %	50 W	3000 V	5 V	85 VAC	264 VAC	120 V	CB CE cULus cURus TUV	-20 °C	70 °C	370 V
MEAN WELL USA Inc. MDR-60-12	Hazardous Locations Industrial ITE (Commercial)		90 mm	100 mm	3.94 in	1.57 "	40 mm	3.54 "	1	Adjustable Output Universal Input	5 A	AC or DC	86 %		3000 V	12 V	85 VAC	264 VAC	120 V	CB CE cULus cURus TUV	-20 °C	70 °C	370 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 12V 60W
