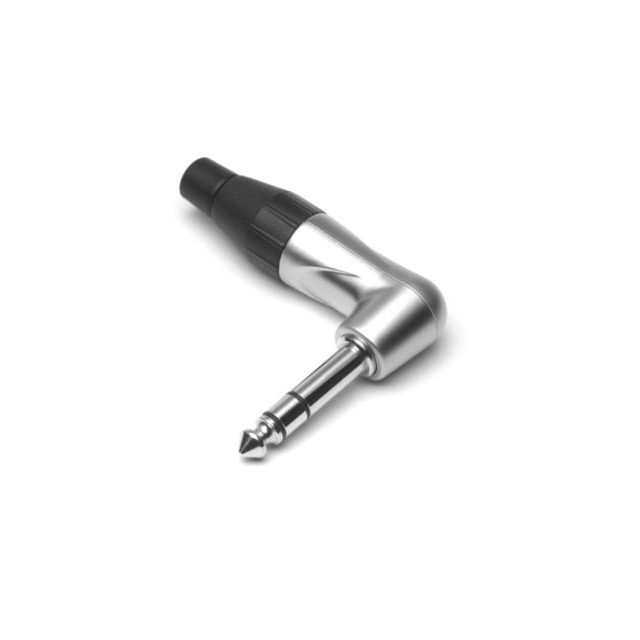

TS3RJ

Active

AMPHENOL AUDIO

PROFESSIONAL RANGE 1/4" PHONE STEREO PLUG, RIGHT-ANGLE, THERMOPLASTIC BACKSHELL, BLACK FINISH, LARGE CABLE CLAMP, SATIN FINISH /

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

PROFESSIONAL RANGE 1/4" PHONE STEREO PLUG, RIGHT-ANGLE, THERMOPLASTIC BACKSHELL, BLACK FINISH, LARGE CABLE CLAMP, SATIN FINISH /

Technical Specifications

Parameters and characteristics for this part

Specification	TS3RJ

Body Color	Silver
Connector Type	Phone Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Zinc Alloy
Internal Switch(s)	False
Mating Length/Depth	1.19 in
Mating Length/Depth	30.3 mm
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	3
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Signal Lines	Stereo
Termination	Solder Eyelet(s)

Part	Mating Length/Depth	Mating Length/Depth	Contact Material	Connector Type	Internal Switch(s)	Signal Lines	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material - Plating [custom]	Housing Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gender	Termination	Body Color	Shielding
AMPHENOL AUDIO TS3RJ	1.19 in	30.3 mm	Brass	Phone Plug		Stereo	3	3	Nickel	Zinc Alloy	10 A	-25 °C	75 ░C	Free Hanging (In-Line) Right Angle	Male	Solder Eyelet(s)	Silver	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 7.47
Newark	Each	250	$ 8.33

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
