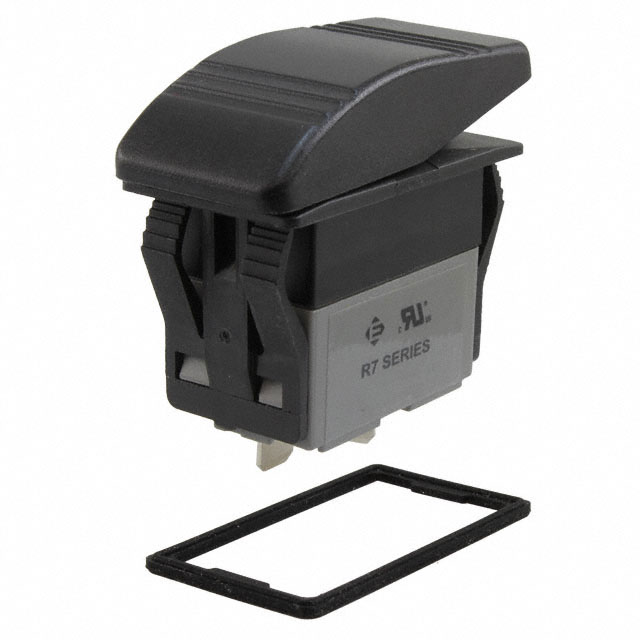

R711FC1-SXXXNBBNNX
ActiveE-Switch
SWITCH ROCKER SPST 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R711FC1-SXXXNBBNNX
ActiveE-Switch
SWITCH ROCKER SPST 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R711FC1-SXXXNBBNNX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.78 | |
| 20 | $ 6.42 | |||
| 40 | $ 6.15 | |||
| 60 | $ 5.99 | |||
| 100 | $ 5.79 | |||
| 260 | $ 5.45 | |||
| 500 | $ 5.22 | |||
| 1000 | $ 4.99 | |||
Description
General part information
R711FC1 Series
Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
