5339Q5 009U500

Active

Belden Inc.

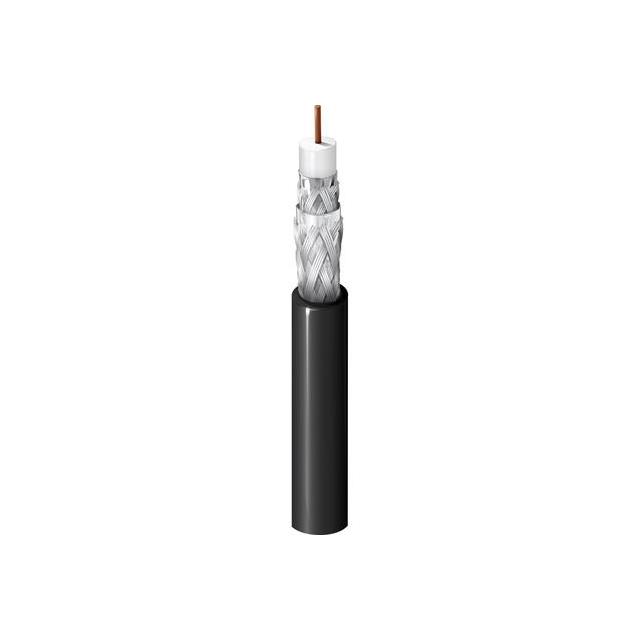

RG-6 QUAD SHIELD COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-6 QUAD SHIELD COAX

Technical Specifications

Parameters and characteristics for this part

Specification	5339Q5 009U500

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.18 in
Dielectric Diameter [diameter]	4.57 mm
Dielectric Material	Foam Polyethylene (FPE)
Features	Quad Shield
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	7.57 mm
Jacket (Insulation) Diameter [diameter]	0.298 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 60 %, 40 %
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	18 AWG

Part	VoP, Velocity of Propagation	Dielectric Material	Conductor Material	Features	Conductor Strand	Wire Gauge	Impedance	Shield Coverage	Shield Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Length	Length	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 5339Q5 009U500	83	Foam Polyethylene (FPE)	Copper Bare	Quad Shield	Solid	18 AWG	75 Ohms	40 % 60 % 100 %	Aluminum	Coaxial	7.57 mm	0.298 "	RG-6	152.4 m	6000 in	Poly-Vinyl Chloride (PVC)	0.18 in	4.57 mm	Braid Foil	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 0.33

General part information

Coaxial Cable 18 AWG RG-6 500.0' (152.40m) 75 Ohms
