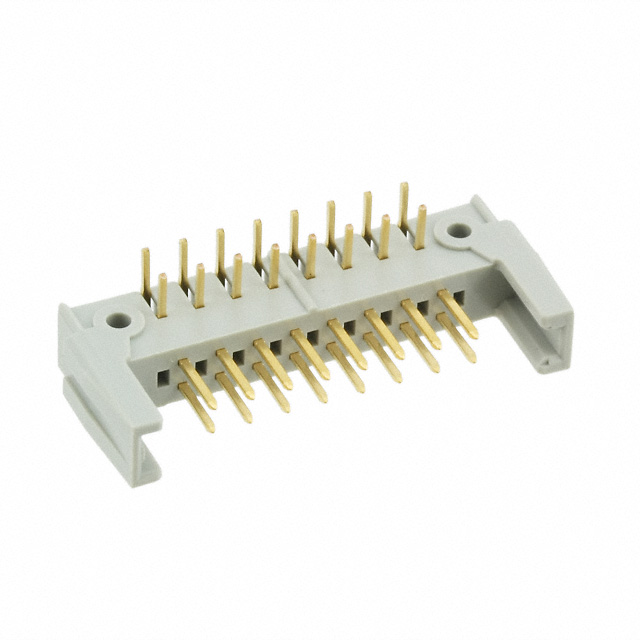

50216-B002PL

Obsolete

3M (TC)

CONN HEADER R/A 16POS 2.54MM

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN HEADER R/A 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	50216-B002PL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.197 in
Contact Length - Mating	5 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Gray
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 2 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Length - Post [x]	Contact Length - Post	Shrouding	Number of Positions Loaded	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Mounting Type	Insulation Color	Contact Shape	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Insulation Material	Style	Number of Rows
3M (TC) 50216-B002PL	0.11 in	2.79 mm	Shrouded - 2 Wall	All	Male Pin	85 °C	-40 °C	UL94 V-0	Through Hole Right Angle	Gray	Square	4.9 mm	0.193 in	Copper Alloy	Gold	2.54 mm	0.1 in	Flash	16	0.1 in	2.54 mm	Push-Pull	0.197 in	5 mm	Gold	12 µin	0.3 µm	Header	Solder	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Board to Cable/Wire	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
