1053770-1

Active

TE Connectivity AMP Connectors

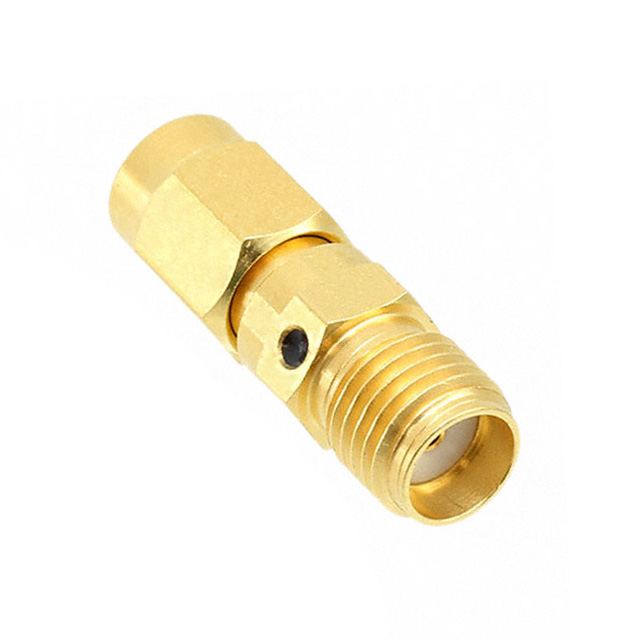

CONN ADAPT SSMA PLUG TO SMA JACK

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT SSMA PLUG TO SMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	1053770-1

Adapter Series	OSM to OSSM
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SSMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	25 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN ADAPT SSMA PLUG TO SMA JACK

Part	Conversion Type	Center Contact Material	Convert From (Adapter End)	Convert To (Adapter End)	Body Finish	Dielectric Material	Center Contact Plating	Adapter Series	Mounting Type	Impedance	Style	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Adapter Type	Frequency - Max [Max]
TE Connectivity AMP Connectors 1053770-1	Between Series	Beryllium Copper	SSMA Plug, Male Pin	Female Socket, SMA Jack	Gold	Polytetrafluoroethylene (PTFE)	Gold	OSM to OSSM	Free Hanging (In-Line)	50 Ohms	Straight	125 °C	-65 ░C	Stainless Steel	Plug to Jack	25 GHz

General part information

Adapter Coaxial Connector SSMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
