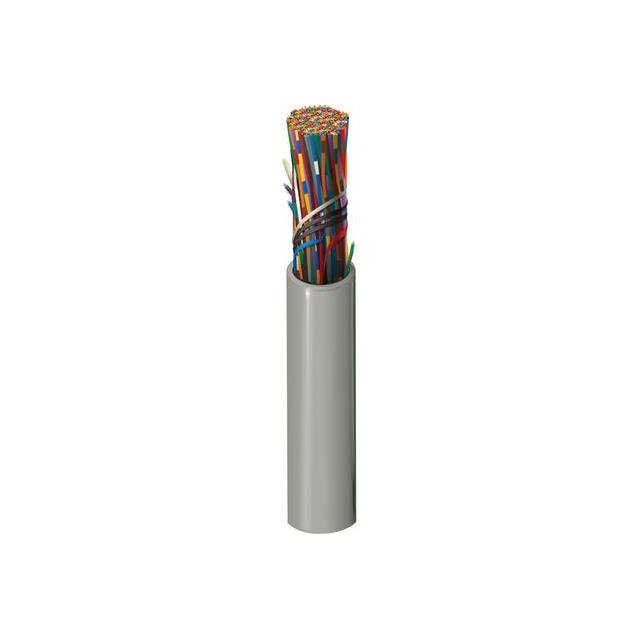

Specification	DPLN100 732CUT

Cable Type	Multi-Pair, Cat3
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter	0.775 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Plenum
Jacket Color	Olive
Length	12 in
Number of Conductors	200
Number of Conductors - Pair	100
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-30 °C
Ratings	Style, UL, CMP
Usage	Network
Voltage	300 V
Wire Gauge	24 AWG

DPLN100 Series

Part	Wire Gauge	Operating Temperature (Min)	Operating Temperature (Max)	Conductor Insulation	Conductor Strand	Length	Jacket (Insulation) Material	Usage	Jacket Color	Voltage	Ratings	Number of Conductors	Number of Conductors - Pair	Cable Type	Conductor Material	Jacket (Insulation) Diameter	Features
Belden Inc. DPLN100 732CUT	24 AWG	-30 °C	60 °C	Poly-Vinyl Chloride (PVC)	Solid	12 in	Plenum Poly-Vinyl Chloride (PVC)	Network	Olive	300 V	CMP Style UL	200	100	Cat3 Multi-Pair	Bare Copper	0.775 in	Rip Cord
