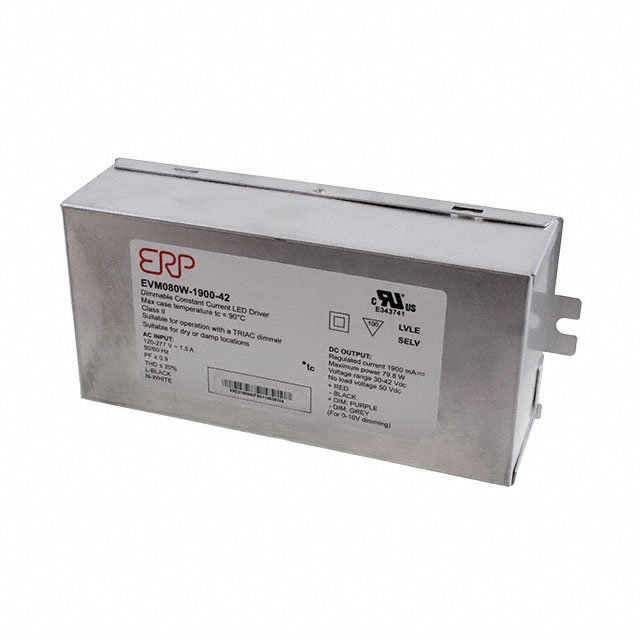

EVM080W-1900-42

Obsolete

ERP Power, LLC

LED DRIVER CC AC/DC 30-42V 1.9A

Search across all available documentation for this part.

Obsolete

ERP Power, LLC

LED DRIVER CC AC/DC 30-42V 1.9A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1.9A 30 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EVM080W-1900-42	EVM080W Series

Approval Agency	CB, cUL, FC, UL, CE, cRUcs	CB, cUL, FC, UL, CE, cRUcs, cURus, KC, CSA, CCC
Current - Output (Max) [Max]	1.9 A	1.75 - 1.9 A
Dimming	ELV, TRIAC	ELV, TRIAC, Analog
Efficiency	89 %	87 - 89 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature	-	194 °F
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	80 W	80 W
Ratings	NEMA 410, IP20	NEMA 410, IP20
Size / Dimension [x]	5.67 in	5.67 in
Size / Dimension [x]	144 mm	144 mm
Size / Dimension [y]	70 mm	70 mm
Size / Dimension [y]	2.76 in	2.76 in
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	42 V	42 V
Voltage - Output [Min]	30 V	30 V

LED DRIVER CC AC/DC 30-42V 1.9A

Part	Type	Termination Style	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Voltage - Input (Min) [Min]	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Number of Outputs	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Dimming	Approval Agency	Mounting Type	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature
ERP Power, LLC EVM080W-1900-42	Constant Current	Wire Leads	277 VAC	1.9 A	OCP, OTP, SCP	120 VAC	80 W	5.67 in	70 mm	144 mm	1.57 "	2.76 in	40 mm	89 %	1	IP20, NEMA 410	-30 ░C	90 °C	AC DC Converter	ELV, TRIAC	CB, CE, cRUcs, cUL, FC, UL	Chassis Mount	42 V	30 V
ERP Power, LLC EVM080W-1750-42-Z1B	Constant Current	Wire Leads	277 VAC	1.75 A	OCP, OTP, SCP	120 VAC		5.67 in	70 mm	144 mm	1.57 "	2.76 in	40 mm	87 %	1	IP20			AC DC Converter	Analog, ELV, TRIAC	CB, CCC, CE, CSA, cURus, KC	Chassis Mount	42 V	30 V	194 °F
