T2040482201-000

Active

TE Connectivity Raychem Cable Protection

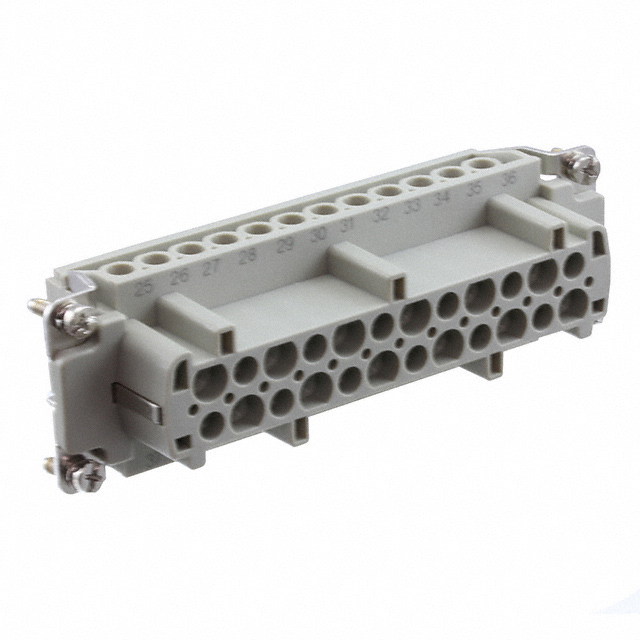

INSERT FEMALE 24POS+GND SCREW

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

INSERT FEMALE 24POS+GND SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	T2040482201-000

Contact Finish	Silver
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H24B
Termination Style	Screw
Voltage Rating	500 V

Part	Wire Gauge	Contact Termination	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Housing Material	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions	Size	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Contact Type	Color	Connector Type
TE Connectivity Raychem Cable Protection T2040002060-000	10 AWG	Crimp	Socket	2 µm	78.7 µin	Silver
TE Connectivity Raychem Cable Protection T2040162201-001							Polycarbonate (PC)	Female	125 °C	-40 °C	Screw	16+Ground	H16B	UL94 V-0	500 V	16 A
TE Connectivity Raychem Cable Protection T2040012040-000	12 AWG	Crimp	Socket	0.75 µm	29.5 µin	Gold
TE Connectivity Raychem Cable Protection T2040244201-000							Polycarbonate (PC)	Female	125 °C	-40 °C	Crimp		H24B	UL94 V-0	500 V	16 A	CE DE	Gray	Insert without Contacts
TE Connectivity Raychem Cable Protection T2040062201-001							Polycarbonate (PC)	Female	125 °C	-40 °C	Screw	6+Ground	H6B	UL94 V-0	500 V	16 A
TE Connectivity Raychem Cable Protection T2040011040-000	12 AWG	Crimp	Pin	0.75 µm	29.5 µin	Gold
TE Connectivity Raychem Cable Protection T2040482201-000						Silver	Polycarbonate (PC)	Female	125 °C	-40 °C	Screw		H24B	UL94 V-0	500 V	16 A
TE Connectivity Raychem Cable Protection T2040002015-000	16 AWG	Crimp	Socket	2 µm	78.7 µin	Silver
TE Connectivity Raychem Cable Protection T2040012060-000	10 AWG	Crimp	Socket	0.75 µm	29.5 µin	Gold
TE Connectivity Raychem Cable Protection T2040002040-000	12 AWG	Crimp	Socket	2 µm	78.7 µin	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 24+Ground Position Screw
