W948D6FBHX5E

Active

Winbond Electronics

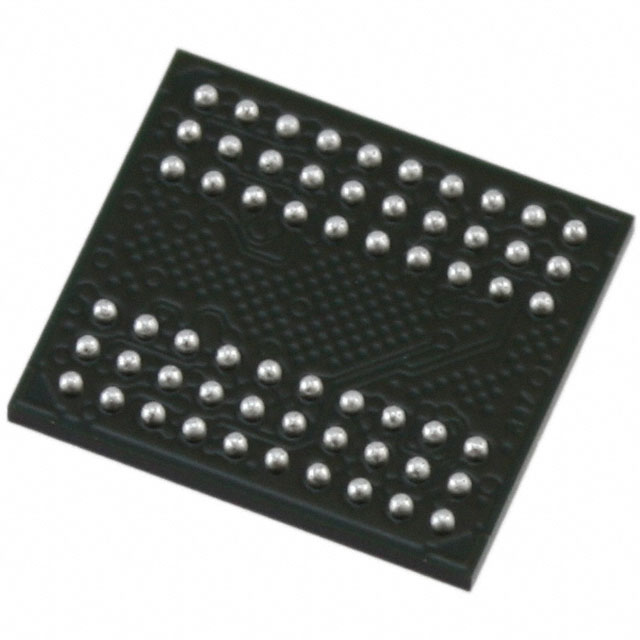

IC DRAM 256MBIT PAR 60VFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

W948D6FBHX5E

Active

Winbond Electronics

IC DRAM 256MBIT PAR 60VFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W948D6FBHX5E	W948D6 Series

Access Time	5 ns	5 ns
Clock Frequency	200 MHz	166 - 200 MHz
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel
Memory Organization	16 M	16 M
Memory Size	256 Gbit	256 Gbit
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-25 °C	-40 - -25 °C
Package / Case	60-TFBGA	60-TFBGA
Supplier Device Package	60-VFBGA (8x9)	60-VFBGA (8x9)
Technology	SDRAM - Mobile LPDDR	SDRAM - Mobile LPDDR
Voltage - Supply [Max]	1.95 V	1.95 V
Voltage - Supply [Min]	1.7 V	1.7 V
Write Cycle Time - Word, Page	15 ns	15 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

W948D6 Series

IC DRAM 256MBIT PAR 60VFBGA

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Memory Interface	Technology	Memory Type	Memory Format	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Memory Organization	Access Time	Mounting Type	Clock Frequency	Write Cycle Time - Word, Page
Winbond Electronics W948D6KBHX5E	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6FBHX5G	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6KBHX6I	60-VFBGA (8x9)	-40 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6FBHX5J	60-VFBGA (8x9)	-40 °C	105 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6KBHX5I	60-VFBGA (8x9)	-40 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6KBHX6E TR	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6FKB-6G TR				Parallel	SDRAM - Mobile LPDDR		DRAM	256 Gbit				16 M
Winbond Electronics W948D6KBHX6E	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6KBHX5E TR	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6FBHX6E TR	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6FBHX6I	60-VFBGA (8x9)	-40 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6FBHX6I TR	60-VFBGA (8x9)			Parallel	SDRAM - Mobile LPDDR		DRAM	256 Gbit			60-TFBGA	16 M			166 MHz
Winbond Electronics W948D6FKB-6G				Parallel	SDRAM - Mobile LPDDR		DRAM	256 Gbit				16 M
Winbond Electronics W948D6FB2X5J		-40 °C	105 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V		16 M	5 ns		200 MHz	15 ns
Winbond Electronics W948D6FBHX6E	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns
Winbond Electronics W948D6FBHX5I	60-VFBGA (8x9)	-40 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6FBHX5E TR	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6FBHX5E	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	200 MHz	15 ns
Winbond Electronics W948D6FBHX6G	60-VFBGA (8x9)	-25 °C	85 °C	Parallel	SDRAM - Mobile LPDDR	Volatile	DRAM	256 Gbit	1.95 V	1.7 V	60-TFBGA	16 M	5 ns	Surface Mount	166 MHz	15 ns

Description

General part information

W948D6 Series

SDRAM - Mobile LPDDR Memory IC 256Mbit Parallel 200 MHz 5 ns 60-VFBGA (8x9)
