TSSE3U60HRVG

Unknown

Taiwan Semiconductor Corporation

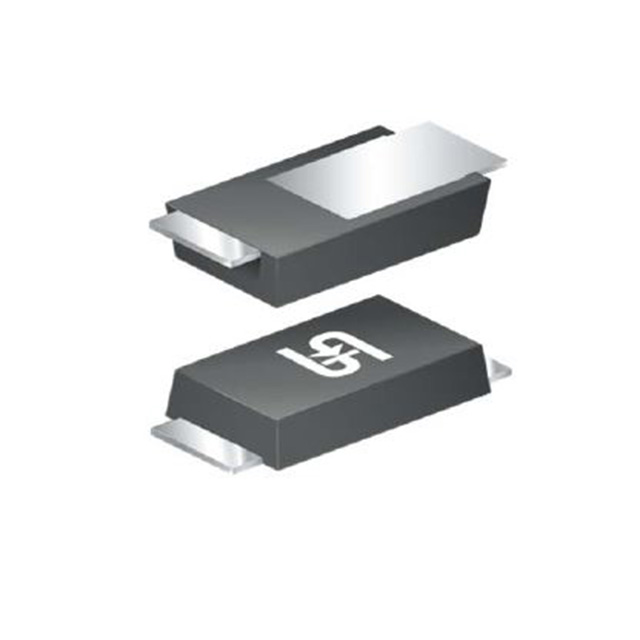

DIODE SCHOTTKY 60V 3A SOD123HE

Search across all available documentation for this part.

Unknown

Taiwan Semiconductor Corporation

DIODE SCHOTTKY 60V 3A SOD123HE

Technical Specifications

Parameters and characteristics for this part

Specification	TSSE3U60HRVG

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	1 mA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123HE
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	580 mV

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Supplier Device Package	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr
Taiwan Semiconductor Corporation TSSE3U60	Surface Mount	60 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A	580 mV	1 mA
Taiwan Semiconductor Corporation TSSE3U60HRVG	Surface Mount	60 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A	580 mV	1 mA
Taiwan Semiconductor Corporation TSSE3U45 RVG	Surface Mount	45 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A		1 mA
Taiwan Semiconductor Corporation TSSE3U60 RVG	Surface Mount	60 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A	580 mV	1 mA
Taiwan Semiconductor Corporation TSSE3H60	Surface Mount	60 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A	600 mV	100 µA
Taiwan Semiconductor Corporation TSSE3U45H	Surface Mount	45 V	Schottky	SOD-123H	SOD-123HE	200 mA 500 ns	150 °C	-55 °C	3 A		1 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 60 V 3A Surface Mount SOD-123HE
