CFB750-300S48-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 48V 749W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

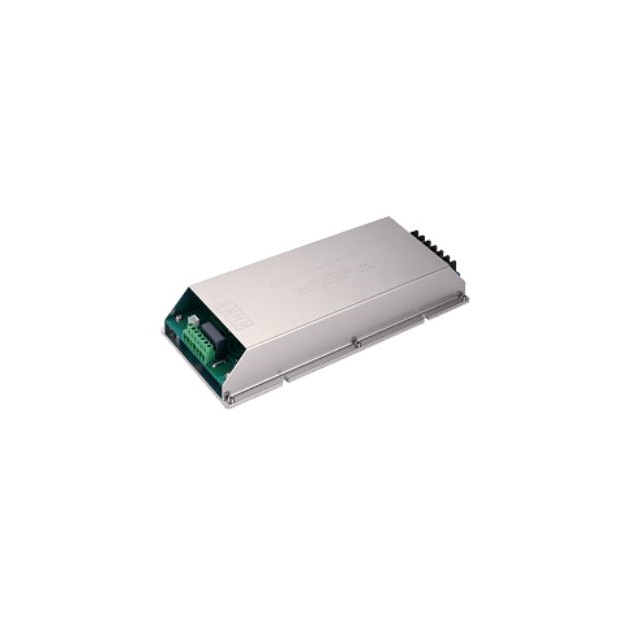

CFB750-300S48-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 48V 749W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 358.62
		5	$ 345.24
		10	$ 339.61
		25	$ 332.31

Description

General part information

CFB750 Series

Enclosed DC DC Converter 1 Output 48V 15.6A 425V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFB750-300S48-CMFD	CFB750 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Control Features	-	Active High, Enable, Active Low
Current - Output (Max)	-	20.8 - 62.5 A
Efficiency	90 %	88 - 90 %
Features	-	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Chassis Mount	Through Hole, Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	80 ¯C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	Full Brick
Power (Watts)	749 W	748 - 750 W
Size / Dimension [x]	9.45 "	4.6 - 9.45 "
Size / Dimension [x]	240 mm	116.8 - 240 mm
Size / Dimension [y]	110 mm	61 - 110 mm
Size / Dimension [y]	4.33 "	2.4 - 4.33 "
Size / Dimension [z]	1.65 "	0.5 - 1.65 in
Size / Dimension [z]	41.9 mm	12.7 - 41.9 mm
Standard Number	62368-1	60950-1, 62368-1
Supplier Device Package	-	Full Brick
Type	Enclosed	Isolated Module, Enclosed
Voltage - Input (Max) [Max]	425 V	425 V
Voltage - Input (Min) [Min]	200 V	200 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	12 - 48 V

CFB750 Series

DC DC CONVERTER 15V 750W

Part	Approval Agency	Voltage - Input (Min) [Min]	Number of Outputs	Supplier Device Package	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Power (Watts)	Features	Applications	Control Features	Package / Case	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
Cincon Electronics Co. LTD CFB750-300S15	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	15 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	50 A	425 V
Cincon Electronics Co. LTD CFB750-300S28-CMFD	CE	200 V	1		3000 V	80 ¯C	-40 °C	28 V	Chassis Mount	62368-1	1.65 "	9.45 "	240 mm	41.9 mm	4.33 "	110 mm	89 %	748 W		ITE (Commercial)			Enclosed	26.7 A	425 V
Cincon Electronics Co. LTD CFB750-300S12	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	12 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	62.5 A	425 V
Cincon Electronics Co. LTD CFB750-300S36N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	36 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	20.8 A	425 V
Cincon Electronics Co. LTD CFB750-300S24	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	24 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module	31.2 A	425 V
Cincon Electronics Co. LTD CFB750-300S28N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	28 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	748 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	26.7 A	425 V
Cincon Electronics Co. LTD CFB750-300S15N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	15 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	50 A	425 V
Cincon Electronics Co. LTD CFB750-300S12N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	12 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	88 %	750 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	62.5 A	425 V
Cincon Electronics Co. LTD CFB750-300S48	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	48 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active High, Enable	Full Brick	Isolated Module		425 V
Cincon Electronics Co. LTD CFB750-300S24N	CE	200 V	1	Full Brick	3000 V	85 °C	-40 °C	24 V	Through Hole	60950-1	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	90 %	749 W	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	ITE (Commercial)	Active Low, Enable	Full Brick	Isolated Module	31.2 A	425 V
