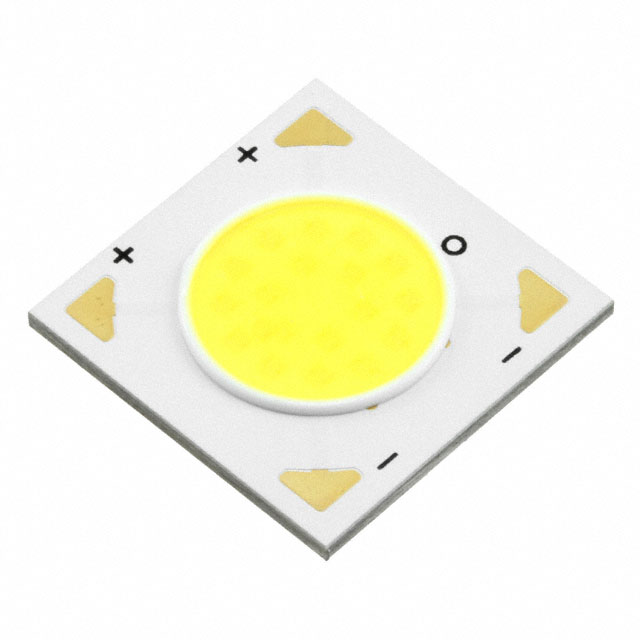

BXRE-50E1000-B-24
ObsoleteBRIDGELUX
LED COB V10 ARRAY WHT SQU 5000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRE-50E1000-B-24
ObsoleteBRIDGELUX
LED COB V10 ARRAY WHT SQU 5000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRE-50E1000-B-24 | BXRE-50 Series |
|---|---|---|
| CCT (K) | 5000 K | 5000 K |
| Color | Cool, White | Cool, White |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 80 | 70 - 98 |
| Current - Max [Max] | 700 mA | 1 - 950 A |
| Current - Test | 350 mA | 1.05 - 900 A |
| Features | - | Dimming |
| Height [z] | 1.7 mm | 1.65 - 1.7 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 9.9 mm | 6.1 - 23.3 mm |
| Lumens/Watt @ Current - Test | 136 lm/W | 115 - 197 lm/W |
| Luminous Flux @ Current/Temperature | 1263 lm | 416 - 11932 lm |
| Size / Dimension [x] | 15.8 mm | 12.5 - 28 mm |
| Size / Dimension [y] | 15.8 mm | 12.5 - 28 mm |
| Temperature - Test | - | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 26.5 V | 9 - 52 V |
BXRE-50 Series
LED COB V22 CL WHT SQUARE 5000K
...
| Part | Light Emitting Surface (LES) [diameter] | Current - Max [Max] | CRI (Color Rendering Index) | Viewing Angle | Size / Dimension [y] | Size / Dimension [x] | Type | Current - Test | Height [z] | Lumens/Watt @ Current - Test | Lens Type | Color | Voltage - Forward (Vf) (Typ) | Temperature - Test | Configuration | Luminous Flux @ Current/Temperature | CCT (K) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRE-50C6501-C-73 | 22.6 mm | 2.88 A | 70 | 120 ° | 28 mm | 28 mm | Chip On Board (COB) | 1.44 A | 1.7 mm | 164 lm/W | Flat | Cool, White | 50.7 V | 85 °C | Square | 11932 lm | ||
BRIDGELUX BXRE-50E1000-B-24 | 9.9 mm | 700 mA | 80 | 120 ° | 15.8 mm | 15.8 mm | Chip On Board (COB) | 350 mA | 1.7 mm | 136 lm/W | Flat | Cool, White | 26.5 V | Square | 1263 lm | 5000 K | ||
BRIDGELUX BXRE-50G2001-C-83 | 14.8 mm | 1.75 A | 90 | 120 ° | 19 mm | 19 mm | Chip On Board (COB) | 500 mA | 1.65 mm | 161 lm/W | Flat | Cool, White | 33.4 V | Square | 2682 lm | |||
BRIDGELUX BXRE-50C2000-C-24 | 13.4 mm | 1.05 A | 70 | 120 ° | 15.8 mm | 15.8 mm | Chip On Board (COB) | 500 mA | 1.7 mm | 148 lm/W | Flat | Cool, White | 32.3 V | Square | 2394 lm | 5000 K | ||
BRIDGELUX BXRE-50E2000-C-24 | 13.4 mm | 1.05 A | 80 | 120 ° | 15.8 mm | 15.8 mm | Chip On Board (COB) | 500 mA | 1.7 mm | 139 lm/W | Flat | Cool, White | 32.3 V | Square | 2252 lm | 5000 K | ||
BRIDGELUX BXRE-50G10F0-B-83 | 10 mm | 200 mA | 90 | 120 ° | Chip On Board (COB) | 1.65 mm | 169 lm/W | Flat | Cool, White | 33.4 V | 85 °C | Square | 1132 lm | 5000 K | Dimming | |||
BRIDGELUX BXRE-50G1001-C-83 | 10.2 mm | 1 A | 90 | 120 ° | Chip On Board (COB) | 300 mA | 1.65 mm | 160 lm/W | Flat | Cool, White | 30.7 V | Square | 1477 lm | |||||
BRIDGELUX BXRE-50G2001-C-74 | 14 mm | 1.26 A | 90 | 19 mm | 19 mm | Chip On Board (COB) | 630 mA | 1.7 mm | 130 lm/W | Flat | Cool, White | 33.9 V | 85 °C | Square | 2780 lm | 5000 K | ||
BRIDGELUX BXRE-50C4001-B-73 | 19.2 mm | 1.8 A | 70 | 120 ° | 24 mm | 24 mm | Chip On Board (COB) | 900 mA | 1.7 mm | Flat | Cool, White | 34 V | 85 °C | Square | 4963 lm | |||
BRIDGELUX BXRE-50G6501-B-73 | 22.6 mm | 2.34 A | 90 | 120 ° | 28 mm | 28 mm | Chip On Board (COB) | 1.7 mm | 131 lm/W | Flat | Cool, White | 50.7 V | 85 °C | Square | 7755 lm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BXRE-50 Series
LED Lighting COBs Engines Modules Chip On Board (COB) V10 Array White, Cool Square
