W6382-5SG-P-3DC

Active

Conxall/Switchcraft

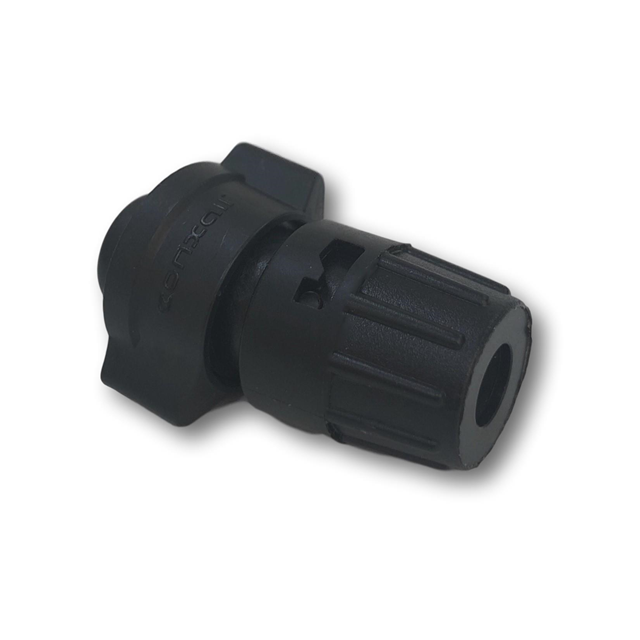

CONN PLUG FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W6382-5SG-P-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

CONN PLUG FMALE 5POS SOLDER CUP

Part	Features	Applications	Mounting Type	Contact Material	Connector Type	Shielding	Contact Finish - Mating	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Insert Material	Backshell Material, Plating	Orientation	Fastening Type	Color	Current Rating (Amps)	Primary Material
Conxall/Switchcraft W6382-5SG-P-3DC	Backshell, Coupling Nut, UV Resistant	Automotive, Communication Systems, Instrumentation	Free Hanging (In-Line)	Copper Alloy	Female Sockets, Plug	Unshielded	Gold	IP66, IP67, IP68	85 °C	-40 °C	300 VAC	Thermoplastic	Thermoplastic	Keyed	Bayonet Lock	Black	Varies by Wire Gauge	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 18.62

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
