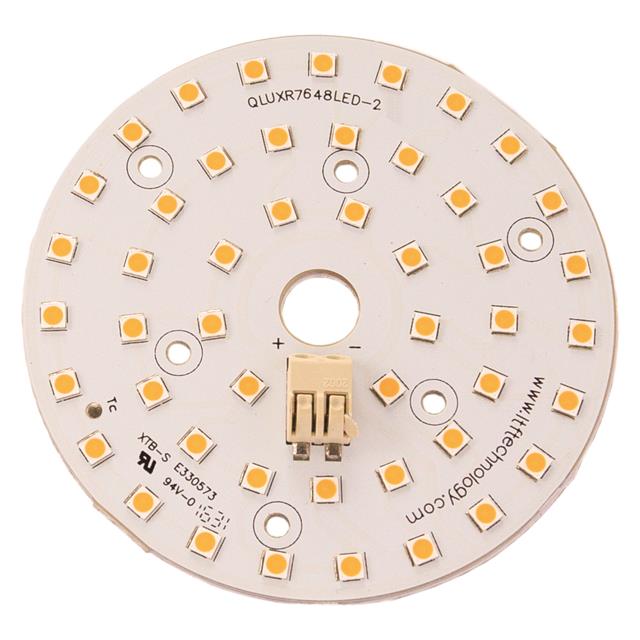

QLUXR7615W48LED1

Active

LTF technology LLC

LED ENG QLUX WHT ROUND 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QLUXR7615W48LED1

Active

LTF technology LLC

LED ENG QLUX WHT ROUND 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.93
		10	$ 11.52
		50	$ 11.31
		100	$ 11.11
		500	$ 9.76
		1000	$ 1.48

Description

General part information

QLUX Series

LED Lighting COBs Engines Modules LED Engine QLUX White, Neutral Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QLUXR7615W48LED1	QLUX Series

CCT (K)	3000 K	2700 - 4000 K
CCT (K)	-	3000 K
CCT (K)	-	1800 K
Color	Neutral, White	Neutral, White
Configuration	Round	Linear, Rectangle, Round, Square
CRI (Color Rendering Index)	90	80 - 98
Current - Max [Max]	600 mA	300 - 700 mA
Current - Test	-	200 - 350 mA
Features	Dimming	Dimming-ELV, Triac, Dimming, With Connector
Height	-	1 - 13 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	120 lm/W	74 - 155 lm/W
Luminous Flux @ Current/Temperature	1800 lm	450 - 4174 lm
Size / Dimension	-	0.5 - 45 mm
Size / Dimension	-	15 - 599 mm
Size / Dimension [diameter]	76.2 mm	10 - 300 mm
Temperature - Test	-	50 °C
Type	LED Engine	LED Engine, Chip On Board (COB)
Viewing Angle	120 °	120 - 160 °
Voltage - Forward (Vf) (Typ)	36 V	34 - 120 VAC

QLUX Series

LED ENG QLUX NEUT WHT LNR 3000K

Part	Height [z]	Lens Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Color	Features	Luminous Flux @ Current/Temperature	CCT (K)	Configuration	Type	Lumens/Watt @ Current - Test	Current - Test	CCT (K) [Max]	CCT (K) [Min]	Current - Max [Max]	Size / Dimension [diameter]	Temperature - Test
LTF technology LLC QLUXDOBAL59925W84930	13 mm	Flat	120 VAC	160 °	93	38 mm	599 mm	Neutral, White	Dimming-ELV, Triac	2200 lm	3000 K	Linear	LED Engine	94 lm/W
LTF technology LLC QLUXDOBAL29205W56930		Flat	120 VAC	160 °	92	38 mm	292 mm	Neutral, White	Dimming-ELV, Triac	500 lm	3000 K	Linear	LED Engine	93 lm/W
LTF technology LLC QLUXCOBI1512932WD-P1	1.5 mm	Flat	34 V		98	12 mm	15 mm	Neutral, White	Dimming	1200 lm		Rectangle	Chip On Board (COB)	82 lm/W	350 mA	3000 K	1800 K	350 mA
LTF technology LLC QLUXL15224LED9030		Flat	36 V	120 °	90	0.5 in	152 mm	Neutral, White	Dimming	792 lm	3000 K	Linear	LED Engine	120 lm/W	200 mA			300 mA
LTF technology LLC QLUX10W350C28V27K9CR	3.5 mm	Flat		160 °	90	41.95 mm	83.9 mm	Neutral, White	With Connector	822 lm	2700 K	Rectangle	LED Engine	83 lm/W	350 mA			350 mA
LTF technology LLC QLUXCOBI15129027-PH	1.5 mm	Flat	34 V		98	12 mm	15 mm	Neutral, White		1200 lm	2700 K	Rectangle	Chip On Board (COB)	96 lm/W	350 mA			350 mA
LTF technology LLC QLUXR7615W48LED1		Flat	36 V	120 °	90			Neutral, White	Dimming	1800 lm	3000 K	Round	LED Engine	120 lm/W				600 mA	76.2 mm
LTF technology LLC QLUXDOBAR10017W42WDM		Flat	120 VAC	160 °	90			Neutral, White	Dimming-ELV, Triac	1250 lm		Round	LED Engine	74 lm/W		3000 K	1800 K
LTF technology LLC QLUXL57524W48LED850L		Flat		120 °	80	25.4 mm	575 mm	Neutral, White	Dimming	1300 lm		Linear	LED Engine	155 lm/W	350 mA					50 °C
LTF technology LLC QLUXDOBAS25436W930		Flat	120 VAC	160 °	96			Neutral, White	Dimming-ELV, Triac	3682 lm	3000 K	Square	LED Engine	100 lm/W					10 in
