STA1085EOA

Active

STMicroelectronics

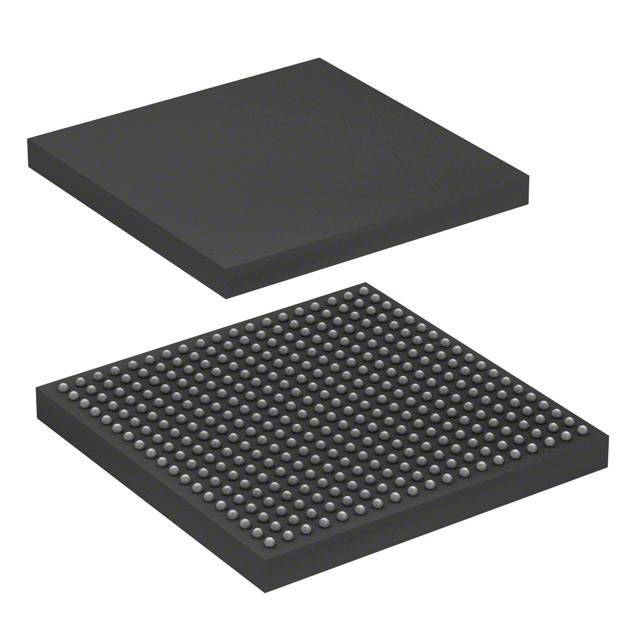

IC MPU 450MHZ 361LFBGA

Search across all available documentation for this part.

Active

STMicroelectronics

IC MPU 450MHZ 361LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	STA1085EOA

Additional Interfaces	SSP/SPI, I2C, UART, CAN
Co-Processors/DSP	ARM® Cortex®-M3
Core Processor	ARM® Cortex®-R4
Display & Interface Controllers	Touchscreen, LCD
Graphics Acceleration	True
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	361-LFBGA
Speed	450 MHz
Supplier Device Package	361-LFBGA (16x16)
USB	USB 2.0 (1)
Voltage - I/O	3.3 V

Part	Core Processor	Mounting Type	Number of Cores/Bus Width	Display & Interface Controllers	Co-Processors/DSP	USB	Voltage - I/O	Supplier Device Package	Package / Case	Additional Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Speed	Security Features	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]
STMicroelectronics STA1085EOA	ARM® Cortex®-R4	Surface Mount	1 Core 32 Bit	LCD Touchscreen	ARM® Cortex®-M3	USB 2.0 (1)	3.3 V	361-LFBGA (16x16)	361-LFBGA	CAN I2C SSP/SPI UART	85 °C	-40 °C	450 MHz
STMicroelectronics STA1085EOA3	ARM® Cortex®-R4	Surface Mount		LCD	ARM® Cortex®-M3	USB 2.0 (2)	3.3 V	361-LFBGA (16x16)	361-LFBGA	CANbus GPIO I2C I2S MMC/SD SPI SSP UART	85 °C	-40 °C	450 MHz	JTAG	32 Bit	2
STMicroelectronics STA1085EUA3	ARM® Cortex®-R4	Surface Mount		LCD	ARM® Cortex®-M3	USB 2.0 (2)	3.3 V	361-LFBGA (16x16)	361-LFBGA	CANbus GPIO I2C I2S MMC/SD SPI SSP UART	85 °C	-40 °C	450 MHz		32 Bit	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	504	$ 10.32

General part information

ARM® Cortex®-R4 Microprocessor IC - 1 Core, 32-Bit 450MHz 361-LFBGA (16x16)
