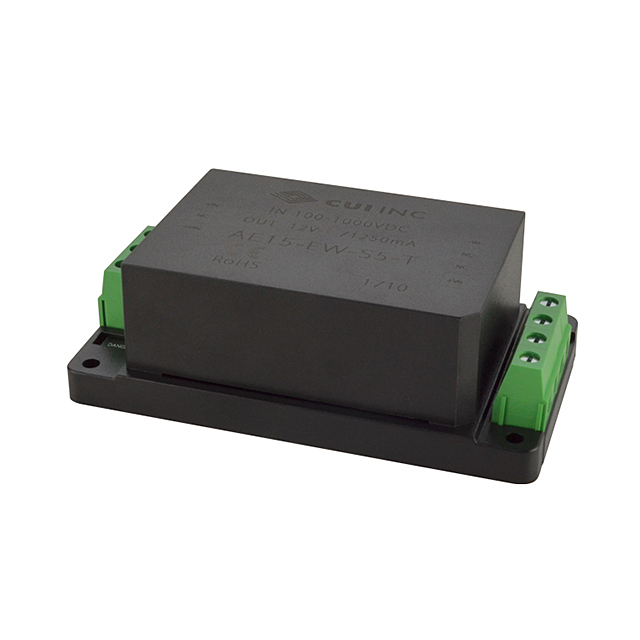

AE15-EW-S12-T

Obsolete

CUI Inc.

DC/DC CONVERTER 12V 15W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC/DC CONVERTER 12V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC/DC CONVERTER 15V 15W

Part	Type	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Output 1	Power (Watts)	Applications	Efficiency	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Features	Standard Number	Package / Case
CUI Inc. AE15-EW-S15-T	Enclosed	100 VDC	Chassis Mount	CE	4000 V	1 A	1000 V	54 mm	1.26 in	3.78 "	32 mm	96.1 mm	2.13 in	1	15 V	15 W	ITE (Commercial)	78 %
CUI Inc. AE15-EW-S12-DIN				CE	4000 V	1.25 A		54 mm	1.44 "	3.78 "	36.6 mm	96.1 mm	2.13 in	1	12 V	15 W	ITE (Commercial)	77 %	DC	100 V	1000 V	OVP, SCP
CUI Inc. AE15-EW-S24-DIN				CE	4000 V	625 mA		54 mm	1.44 "	3.78 "	36.6 mm	96.1 mm	2.13 in	1	24 V	15 W		80 %	DC	100 V	1000 V
CUI Inc. AE15-EW-S12-T	Enclosed	100 VDC	Chassis Mount	CE	4000 V	1.25 A	1000 V	54 mm	1.26 in	3.78 "	32 mm	96.1 mm	2.13 in	1	12 V	15 W	ITE (Commercial)	77 %
CUI Inc. AE15-EW-S24	Isolated Module	100 VDC	Through Hole	EN	4000 V	625 mA	1000 V	48 mm	0.93 in	2.76 in	23.5 mm	70 mm	1.89 in	1	24 V	15 W	ITE (Commercial)	80 %				OCP, OVP, SCP	55024, 55032	5-DIP Module
CUI Inc. AE15-EW-S15	Isolated Module	100 VDC	Through Hole	EN	4000 V	1 A	1000 V	48 mm	0.93 in	2.76 in	23.5 mm	70 mm	1.89 in	1	15 V	15 W	ITE (Commercial)	78 %				OCP, OVP, SCP	55024, 55032	5-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed DC DC Converter 1 Output 12V 1.25A 1000V Input
