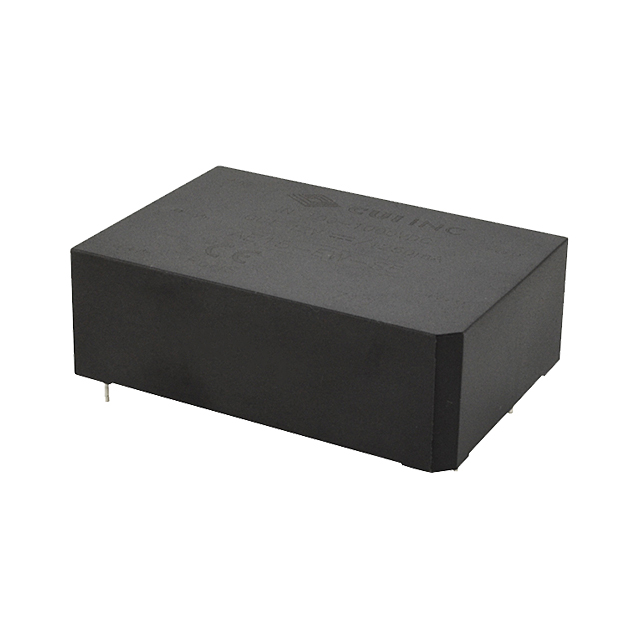

AE15-EW-S24

Obsolete

CUI Inc.

DC DC CONVERTER 24V 15W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 24V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC/DC CONVERTER 15V 15W

Part	Type	Voltage - Input (Min) [Min]	Mounting Type	Approval Agency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Output 1	Power (Watts)	Applications	Efficiency	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Features	Standard Number	Package / Case
CUI Inc. AE15-EW-S15-T	Enclosed	100 VDC	Chassis Mount	CE	4000 V	1 A	1000 V	54 mm	1.26 in	3.78 "	32 mm	96.1 mm	2.13 in	1	15 V	15 W	ITE (Commercial)	78 %
CUI Inc. AE15-EW-S12-DIN				CE	4000 V	1.25 A		54 mm	1.44 "	3.78 "	36.6 mm	96.1 mm	2.13 in	1	12 V	15 W	ITE (Commercial)	77 %	DC	100 V	1000 V	OVP, SCP
CUI Inc. AE15-EW-S24-DIN				CE	4000 V	625 mA		54 mm	1.44 "	3.78 "	36.6 mm	96.1 mm	2.13 in	1	24 V	15 W		80 %	DC	100 V	1000 V
CUI Inc. AE15-EW-S12-T	Enclosed	100 VDC	Chassis Mount	CE	4000 V	1.25 A	1000 V	54 mm	1.26 in	3.78 "	32 mm	96.1 mm	2.13 in	1	12 V	15 W	ITE (Commercial)	77 %
CUI Inc. AE15-EW-S24	Isolated Module	100 VDC	Through Hole	EN	4000 V	625 mA	1000 V	48 mm	0.93 in	2.76 in	23.5 mm	70 mm	1.89 in	1	24 V	15 W	ITE (Commercial)	80 %				OCP, OVP, SCP	55024, 55032	5-DIP Module
CUI Inc. AE15-EW-S15	Isolated Module	100 VDC	Through Hole	EN	4000 V	1 A	1000 V	48 mm	0.93 in	2.76 in	23.5 mm	70 mm	1.89 in	1	15 V	15 W	ITE (Commercial)	78 %				OCP, OVP, SCP	55024, 55032	5-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 24V 625mA 100V - 1000V Input

Technical documentation and resources

No documents available
