Description
General part information
SIT5711 Series

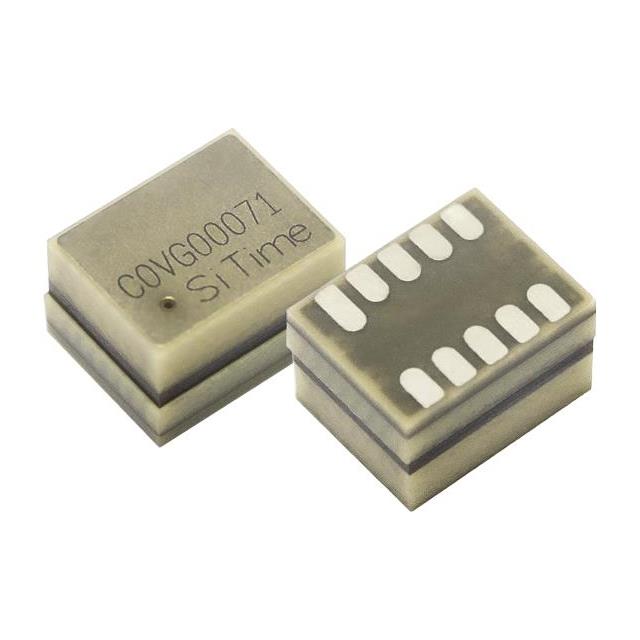

16.668 MHz OCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT5711AI-KW-33E-16.668000X |
|---|---|
| Base Resonator | MEMS |
| Frequency | 16.668 MHz |
| Frequency Stability | 5 ppb |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.244 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 10-SMD, No Lead |
| Package Length | 9 mm |
| Package Name | 10-SMD |
| Package Width | 7 mm |
| Size / Dimension Length | 0.354 in |
| Size / Dimension Width | 0.276 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
