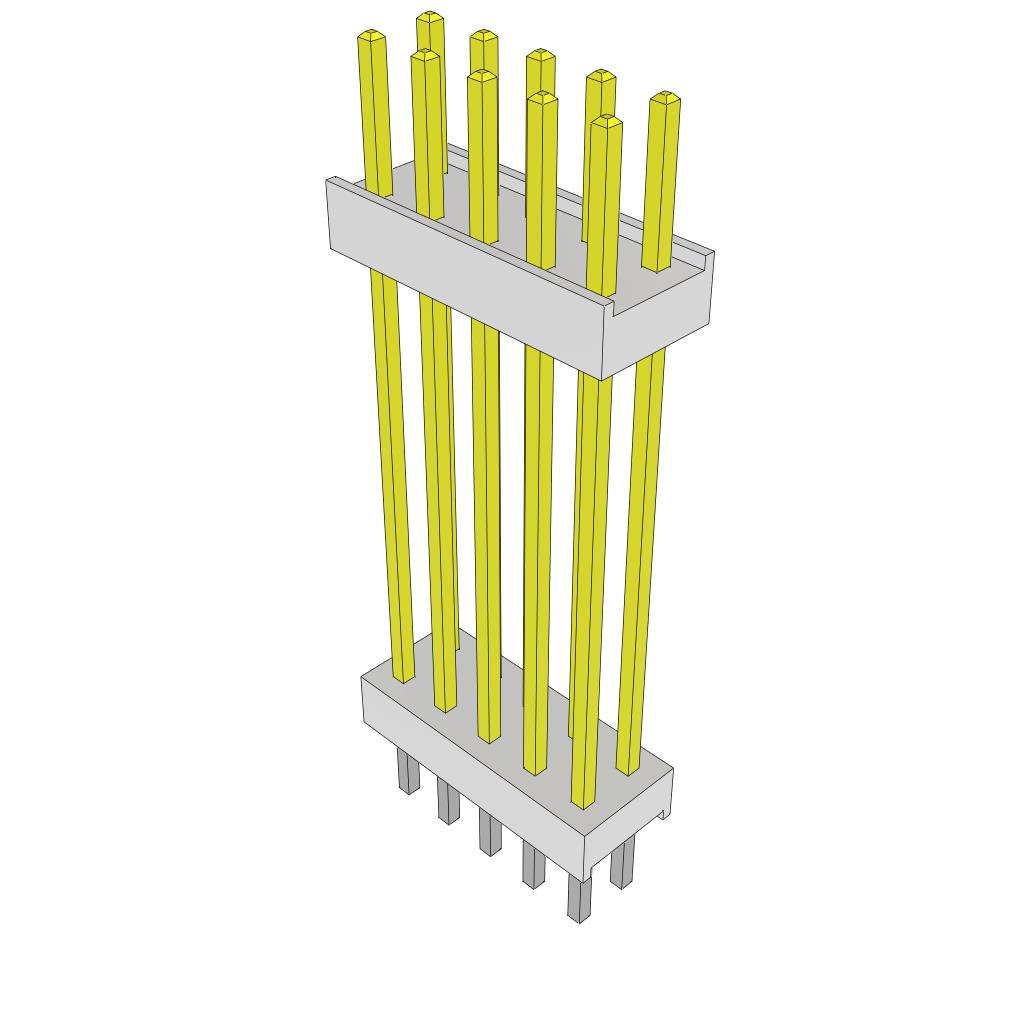

HW-05-19-L-D-970-160

Active

Samtec Inc.

CONN BRD STACK .100" 10POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

HW-05-19-L-D-970-160

Active

Samtec Inc.

CONN BRD STACK .100" 10POS

Deep-Dive with AI

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-05-19-L-D-970-160

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	33.782 mm
Length - Overall Pin [x]	1.33 in
Length - Post (Mating) [x]	0.2 in
Length - Post (Mating) [x]	5.08 mm
Length - Stack Height [x]	0.97 in
Length - Stack Height [x]	24.638 mm
Length - Tail	0.16 in
Length - Tail	4.064 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

HW-05-19 Series

Part	Color	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [x]	Length - Stack Height [x]	Contact Finish - Post (Mating)	Termination	Row Spacing [x]	Row Spacing	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Number of Positions	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Tail	Length - Tail
Samtec Inc. HW-05-19-G-D-925-135	Black	0.27 in	6.858 mm	23.495 mm	0.925 in	Gold	Solder	0.1 in	2.54 mm	0.25 Ám	10 Áin	2	10	3.429 mm	0.135 in	2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole
Samtec Inc. HW-05-19-S-D-1030-090	Black	0.21 in	5.334 mm	26.162 mm	1.03 in	Gold	Solder	0.1 in	2.54 mm	0.76 µm	30 µin	2	10	2.286 mm	0.09 in	2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole
Samtec Inc. HW-05-19-L-D-970-160	Black	0.2 in	5.08 mm	24.638 mm	0.97 in	Gold	Solder	0.1 in	2.54 mm	0.25 Ám	10 Áin	2	10			2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole	0.16 in	4.064 mm
Samtec Inc. HW-05-19-G-D-1000-200	Black	0.13 in	3.302 mm	25.4 mm	1 in	Gold	Solder	0.1 in	2.54 mm	0.25 Ám	10 Áin	2	10			2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole	0.2 in	5.08 mm
Samtec Inc. HW-05-19-G-D-950-100	Black	0.28 in	7.112 mm	24.13 mm	0.95 in	Gold	Solder	0.1 in	2.54 mm	0.25 Ám	10 Áin	2	10	2.54 mm	0.1 "	2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole
Samtec Inc. HW-05-19-F-D-763-277	Black	0.29 in	7.366 mm	19.38 mm	0.763 in	Gold	Solder	0.1 in	2.54 mm	0.076 Ám	3 Áin	2	10	7.036 mm	0.277 "	2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole
Samtec Inc. HW-05-19-L-D-787-142	Black	0.401 in	10.185 mm	20 mm	0.787 in	Gold	Solder	0.1 in	2.54 mm	0.25 Ám	10 Áin	2	10	3.6 mm	0.142 in	2.54 mm	0.1 in	33.782 mm	1.33 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.13
