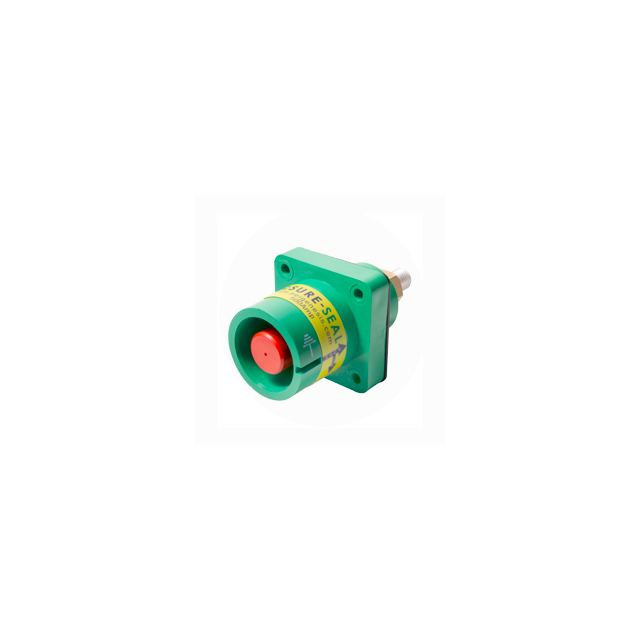

IPSPS-N-W-T5-UL

Active

Sure-Seal

CONN PLUG MALE 1P SILV THREADED

Search across all available documentation for this part.

Active

Sure-Seal

CONN PLUG MALE 1P SILV THREADED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug, Male Pins Threaded

Technical documentation and resources

Specification	IPSPS-N-W-T5-UL	IPSPS Series

Applications	Industrial	Industrial
Color	White	Blue, White
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Silver	Silver
Current Rating (Amps)	800 A	800 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Flange	Flange
Number of Positions	1	1
Primary Material	Plastic	Plastic
Termination	Threaded	Threaded
Voltage Rating	1000 VAC	1000 VAC

Part	Voltage Rating	Termination	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Mounting Feature	Primary Material	Connector Type	Applications	Color	Number of Positions	Ingress Protection	Contact Finish - Mating
Sure-Seal IPSPS-N-BL-T5-UL	1000 VAC	Threaded	Bayonet Lock	UL94 V-0	800 A	Flange	Plastic	Male Pins, Plug	Industrial	Blue	1	IP67 - Dust Tight, Waterproof	Silver
Sure-Seal IPSPS-N-W-T5-UL	1000 VAC	Threaded	Bayonet Lock	UL94 V-0	800 A	Flange	Plastic	Male Pins, Plug	Industrial	White	1	IP67 - Dust Tight, Waterproof	Silver
