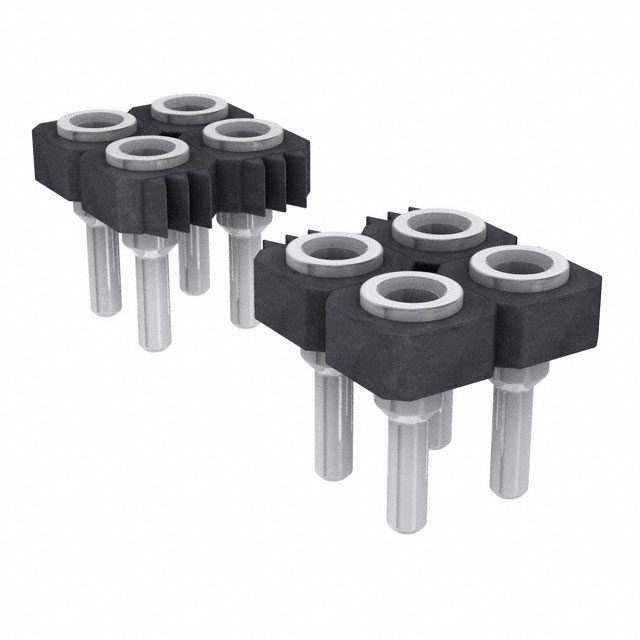

SDL-105-TT-12

Unknown

Samtec Inc.

CONN RCPT 10POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDL-105-TT-12

Unknown

Samtec Inc.

CONN RCPT 10POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDL-105-TT-12

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post [x]	2.41 mm
Contact Length - Post [x]	0.095 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.095 in
Insulation Height [z]	2.41 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SDL-105 Series

Part	Number of Positions	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Termination	Number of Positions Loaded	Contact Finish - Post	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Contact Shape	Contact Type	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SDL-105-TT-10	10	3.1 mm	0.122 in	2	0.108 in	2.75 mm	105 ░C	-55 °C	Push-Pull	Through Hole	Solder	All	Tin	Beryllium Copper	2.54 mm	0.1 in	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Circular	Female Socket	Receptacle
Samtec Inc. SDL-105-G-10	10	3.1 mm	0.122 in	2	0.108 in	2.75 mm	125 °C	-55 °C	Push-Pull	Through Hole	Solder	All	Gold	Beryllium Copper	2.54 mm	0.1 in	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Circular	Female Socket	Receptacle	Gold	10 çin	0.25 çm	30 Áin	0.76 Ám
Samtec Inc. SDL-105-TT-12	10			2			105 ░C	-55 °C	Push-Pull	Through Hole	Solder	All	Tin	Beryllium Copper	2.54 mm	0.1 in	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Circular	Female Socket	Receptacle						2.41 mm	0.095 in	0.095 in	2.41 mm
Samtec Inc. SDL-105-T-19	10	2.1 mm	0.083 "	2			125 °C	-55 °C	Push-Pull	Through Hole	Solder	All		Beryllium Copper	2.54 mm	0.1 in	0.1 in	2.54 mm	Black	Liquid Crystal Polymer (LCP)	Circular	Female Socket	Receptacle	Gold			30 Áin	0.76 Ám	2.08 mm	0.082 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDL-105 Series

10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin

Documents

Technical documentation and resources
