C4412.21.17

Active

Prysmian Group

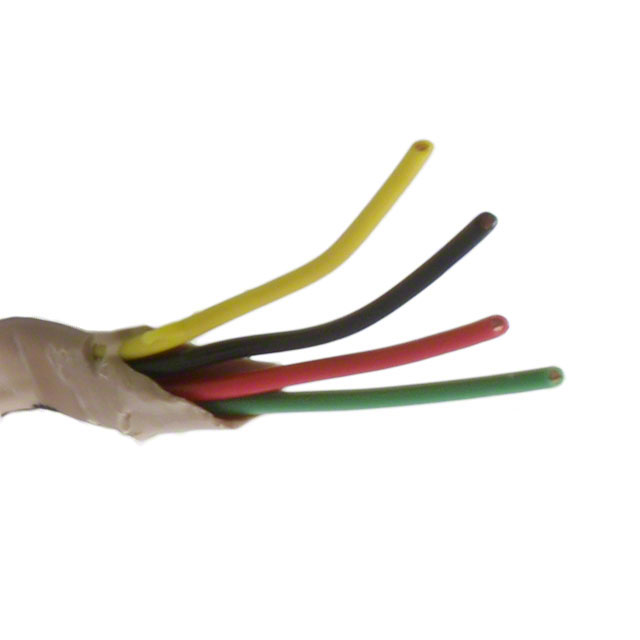

CABLE 4COND 22AWG BEIGE 1000'

Deep-Dive with AI

Search across all available documentation for this part.

C4412.21.17

Active

Prysmian Group

CABLE 4COND 22AWG BEIGE 1000'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4412.21.17

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand	Solid
Features	Flame Retardant
Jacket (Insulation) Diameter [diameter]	3.18 mm
Jacket (Insulation) Diameter [diameter]	0.125 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Beige
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	22 AWG

C4412 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Insulation	Conductor Strand	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Cable Type	Wire Gauge	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Features	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Prysmian Group C4412.25.17	-20 C	60 °C	500 '	152.4 m	3.18 mm	0.125 in	Beige	Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3
Prysmian Group C4412ST.25.05	-20 C	60 °C	500 '	152.4 m	3.43 mm	0.135 in	Yellow	Poly-Vinyl Chloride (PVC)		Copper Bare	Poly-Vinyl Chloride (PVC) Riser	4	Speaker	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	UL Style CMR	7	0.0096 in
Prysmian Group C4412.25.02	-20 C	60 °C	500 '	152.4 m	3.18 mm	0.125 in		Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3
Prysmian Group C4412.30.02	-20 C	60 °C			3.18 mm	0.125 in		Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3			1000 ft	304.8 m
Prysmian Group C4412ST.25.10	-20 C	60 °C	500 '	152.4 m	3.43 mm	0.135 in	Gray	Poly-Vinyl Chloride (PVC)		Copper Bare	Poly-Vinyl Chloride (PVC) Riser	4	Speaker	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	UL Style CMR	7	0.0096 in
Prysmian Group C4412.25.04	-20 C	60 °C	500 '	152.4 m	3.18 mm	0.125 in	Orange	Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3
Prysmian Group C4412.30.10	-20 C	60 °C			3.18 mm	0.125 in	Gray	Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3			1000 ft	304.8 m
Prysmian Group C4412.21.17	-20 C	60 °C			3.18 mm	0.125 in	Beige	Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3			1000 ft	304.8 m
Prysmian Group C4412ST.30.02	-20 C	60 °C			3.43 mm	0.135 in		Poly-Vinyl Chloride (PVC)		Copper Bare	Poly-Vinyl Chloride (PVC) Riser	4	Speaker	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	UL Style CMR	7	0.0096 in	1000 ft	304.8 m
Prysmian Group C4412.25.05	-20 C	60 °C	500 '	152.4 m	3.18 mm	0.125 in	Yellow	Poly-Vinyl Chloride (PVC)	Solid	Copper Annealed Bare	Poly-Vinyl Chloride (PVC)	4	Multi-Conductor	22 AWG	300 V	0.015 in	0.381 mm	Alarm Security Sound	Flame Retardant	ASTM B-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C4412 Series

4 Conductor Multi-Conductor Cable Beige 22 AWG 1000.0' (304.8m)

Documents

Technical documentation and resources

No documents available
