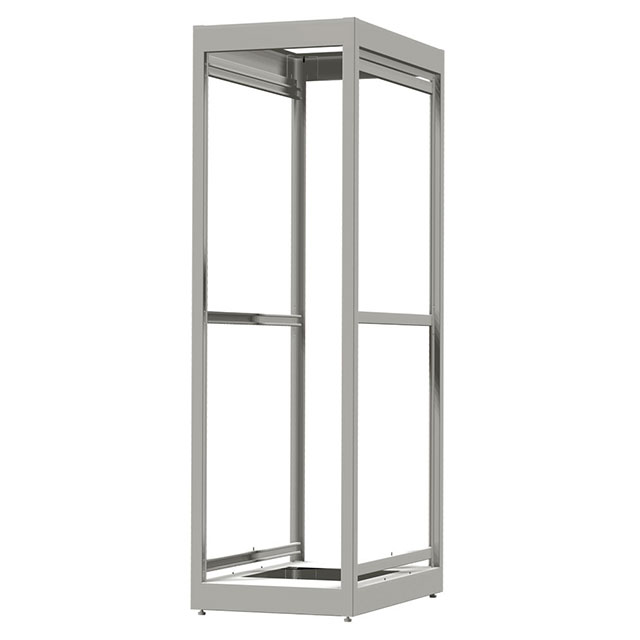

C2F198523LG1

Active

Hammond Manufacturing

RACK FRAME

Search across all available documentation for this part.

Active

Hammond Manufacturing

RACK FRAME

Technical Specifications

Parameters and characteristics for this part

Specification	C2F198523LG1

Color	Gray
Dimensions - Overall [x]	23.63 in
Dimensions - Overall [x]	600.2 mm
Dimensions - Overall [y]	584.2 mm
Dimensions - Overall [y]	23 in
Dimensions - Overall [z]	2363.72 mm
Dimensions - Overall [z]	93.06 in
Dimensions - Panel [x]	549.4 mm
Dimensions - Panel [x]	21.63 in
Dimensions - Panel [y]	485.39 mm
Dimensions - Panel [y]	19.11 in
Dimensions - Panel [z]	2179.57 mm
Dimensions - Panel [z]	85.81 "
Door	Doorless
Features	Front and Rear Access
Material	Metal, Steel
Number of Units	49 U
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Style	Open Rack, Double Frame
Type	Open Rack
Weight	56.7 kg
Weight	125 lbs

Part	Shipping Info	Style	Color	Material	Dimensions - Overall [z]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [y]	Door	Weight	Weight	Type	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [x]	Dimensions - Panel [y]	Dimensions - Panel [z]	Dimensions - Panel [x]	Number of Units	Features
Hammond Manufacturing C2F198523LG1	Drop shipped from the Manufacturer's Warehouse	Open Rack Double Frame	Gray	Metal Steel	2363.72 mm	584.2 mm	23.63 in	600.2 mm	93.06 in	23 in	Doorless	56.7 kg	125 lbs	Open Rack	485.39 mm	2179.57 mm	549.4 mm	19.11 in	85.81 "	21.63 in	49 U	Front and Rear Access

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 857.03

General part information

Metal, Steel Open Rack Open Rack, Double Frame 23.630" L x 23.000" W x 93.060" H (600.20mm x 584.20mm x 2363.72mm) Gray
