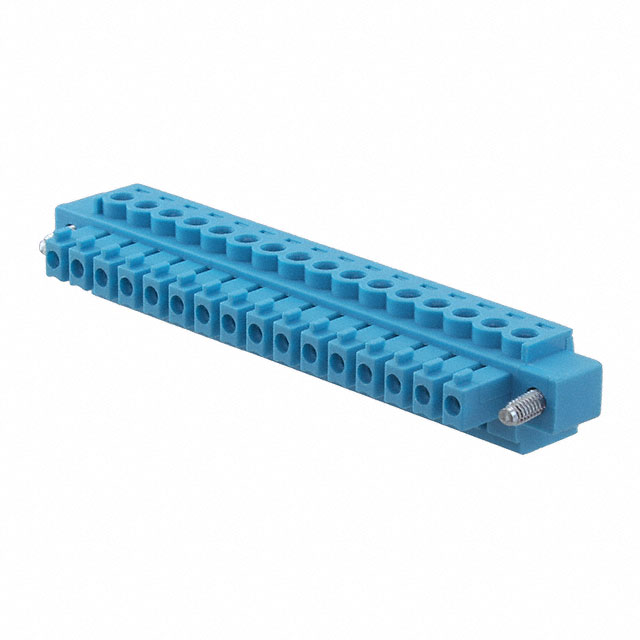

TBP02P1W-381-16BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBP02P1W-381-16BE

Active

CUI Devices

TERMINAL BLOCK, PLUGGABLE, 3.81,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP02P1W-381-16BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - IEC	7 A
Current - UL	8 A
Features	Mating Flange
Insulation Height	0.441 "
Insulation Height	11.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	16
Screw Size	M2
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	0.2 Nm
Torque - Screw	1.7 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	250 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length	7 mm

TBP02P1 Series

Part	Pitch [x]	Pitch [x]	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Screw Size	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Wire Strip Length	Voltage - IEC	Material Flammability Rating	Voltage - UL	Current - UL	Type	Contact Material	Contact Mating Finish	Insulation Height	Insulation Height	Mounting Type	Number of Levels	Positions Per Level	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Features	Wire Gauge or Range - mm²	Number of Positions
CUI Devices TBP02P1-381-08BE	0.15 in	3.81 mm	Blue	8	-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	8	0.2 Nm	1.7 Lb-In	1.5 mm˛
CUI Devices TBP02P1-381-12BE	0.15 in	3.81 mm	Blue	12	-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	12	0.2 Nm	1.7 Lb-In	1.5 mm˛
CUI Devices TBP02P1W-381-03BE	0.15 in	3.81 mm	Blue		-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	3	0.2 Nm	1.7 Lb-In	1.5 mm˛	Mating Flange
CUI Devices TBP02P1W-381-12BE	0.15 in	3.81 mm	Blue	12	-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	12	0.2 Nm	1.7 Lb-In		Mating Flange	1.5 mm²
CUI Devices TBP02P1-381-05BE	0.15 in	3.81 mm	Blue		-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	5	0.2 Nm	1.7 Lb-In		Groove Guide	1.5 mm²
CUI Devices TBP02P1-381-07BE	0.15 in	3.81 mm	Blue	7	-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	7	0.2 Nm	1.7 Lb-In			1.5 mm²
CUI Devices TBP02P1-381-09BE	0.15 in	3.81 mm	Blue	9	-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	9	0.2 Nm	1.7 Lb-In	1.5 mm˛
CUI Devices TBP02P1-381-16BE	0.15 in	3.81 mm	Blue		-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	16	0.2 Nm	1.7 Lb-In			1.5 mm²	16
CUI Devices TBP02P1W-381-05BE	0.15 in	3.81 mm	Blue		-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	5	0.2 Nm	1.7 Lb-In		Mating Flange	1.5 mm²
CUI Devices TBP02P1W-381-16BE	0.15 in	3.81 mm	Blue		-40 °C	105 ░C	Screw - Leaf Spring Wire Guard	M2	28 AWG	16 AWG	7 A	7 mm	250 V	UL94 V-0	300 V	8 A	Plug Female Sockets	Copper Alloy	Nickel	0.441 "	11.2 mm	Free Hanging (In-Line)	1	16	0.2 Nm	1.7 Lb-In		Mating Flange	1.5 mm²	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.95
		10	$ 2.25
		25	$ 2.11
		50	$ 1.87
		100	$ 1.83
		250	$ 1.79

Description

General part information

TBP02P1 Series

16 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
