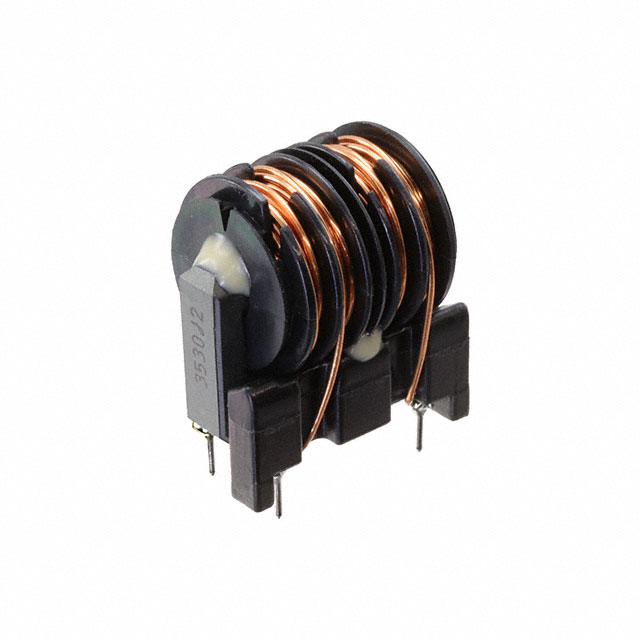

SS30V-350036

Active

KEMET

COMMON MODE FILTER, 3.6MH, 3.5A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

COMMON MODE FILTER, 3.6MH, 3.5A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Height (Max) [Max]	Height (Max)	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage Rating - AC	Number of Lines	Operating Temperature [Min]	Operating Temperature [Max]	Inductance @ Frequency	Package / Case	Package / Case
KEMET SS30V-300054	Power Line	1.299 in	33 mm	120 mOhm	3 A	22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	5.4 mH	4 Lead	Vertical
KEMET SS30V-080730	Power Line	1.299 in	33 mm	1.5 Ohm	800 mA	22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	73 mH	4 Lead	Vertical
KEMET SS30V-R200132	Power Line	1.299 in	33 mm	210 mOhm	2 A	22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	13.2 mH	4 Lead	Vertical
KEMET SS30V-120290	Power Line	1.299 in	33 mm	600 mOhm	1.2 A	22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	1 kHz 29 mH	4 Lead	Vertical
KEMET SS30V-R450017	Power Line	1.299 in	33 mm	60 mOhm		22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	1.7 mH	4 Lead	Vertical
KEMET SS30V-350036	Power Line	1.299 in	33 mm	100 mOhm	3.5 A	22.5 mm	31 mm	1.22 in	0.886 "	Through Hole	250 V	2	-40 °C	120 °C	3.6 mH	4 Lead	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.6 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 3.5A DCR 100mOhm
