ARV10A12
ObsoletePanasonic Electric Works
IC RF SWITCH SPDT 8GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
ARV10A12
ObsoletePanasonic Electric Works
IC RF SWITCH SPDT 8GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ARV10A12 |
|---|---|
| Circuit | SPDT |
| Impedance | 50 Ohms |
| Insertion Loss | 0.3 dB |
| Isolation [Min] | 70 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |

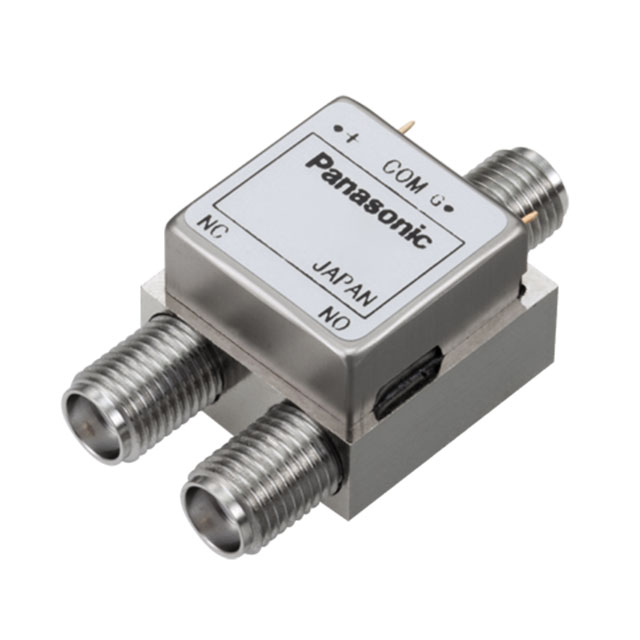

| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Supplier Device Package | Module |
| Test Frequency | 8 GHz |
| Topology | Reflective |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ARV10 Series
RF Switch IC General Purpose SPDT 8 GHz 50Ohm Module
