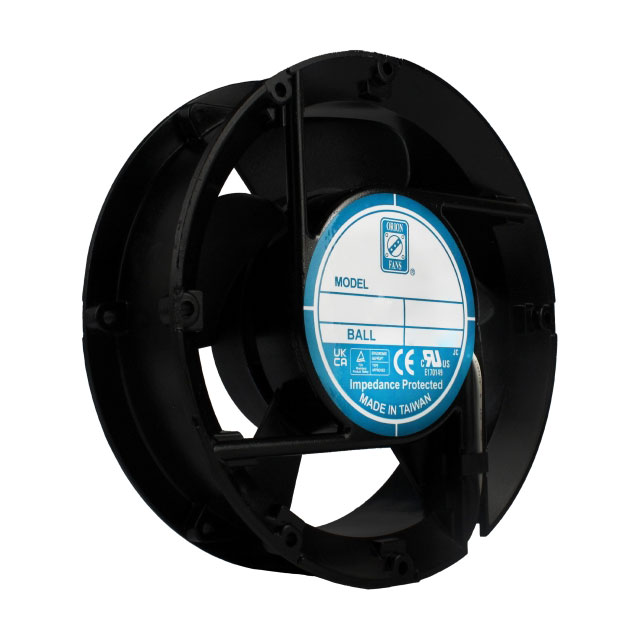

OA172AP-22-1WB

Active

Orion Fans

AC FAN, 235 CFM, 3200 RPM, 35 W, 230 VAC, 52 DB, 172 MM X 51 MM, 2 LEAD WIRES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Miscellaneous EN

OA172AP-22-1WB

Active

Orion Fans

AC FAN, 235 CFM, 3200 RPM, 35 W, 230 VAC, 52 DB, 172 MM X 51 MM, 2 LEAD WIRES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Miscellaneous EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA172AP-22-1WB

Air Flow	235 CFM
Air Flow	6.58 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	52 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	35 W
RPM	3200 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172 mm
Static Pressure	0.7 in H2O
Static Pressure	174.4 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Voltage Range [Max]	260 VAC
Voltage Range [Min]	160 VAC
Weight	1.2 kg
Weight	2.7 lbs
Width [y]	51 mm

OA172AP Series

Part	Material - Frame	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Voltage - Rated	Width [y]	Power (Watts)	Approval Agency	RPM	Size / Dimension	Size / Dimension [diameter]	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Termination	Air Flow	Air Flow	Fan Type	Material - Blade	Weight	Weight	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Features
Orion Fans OA172AP-11-3TB	Aluminum	33 dB(A)	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	16 W	cURus TUV	1800 RPM	Round	172 mm	107.1 Pa	0.43 in H2O	80 VAC	130 VAC	Ball	2 Terminals	3.78 mł/min	135 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1TB	Aluminum	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	230 VAC	51 mm	35 W	cURus TUV	3200 RPM	Round	172 mm	174.4 Pa	0.7 in H2O	160 VAC	260 VAC	Ball	2 Terminals	6.58 m³/min	235 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1TB1855	Aluminum	59 dB(A)					50000 Hrs	230 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O			Ball	2 Terminals	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP-22-1WB1855	Aluminum	59 dB(A)					50000 Hrs	230 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O			Ball	2 Wire Leads	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP-11-2TB	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	20 W	cURus TUV	2400 RPM	Round	172 mm	122.1 Pa	0.49 in H2O	80 VAC	130 VAC	Ball	2 Terminals	4.76 m³/min	170 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-11-2WB	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	20 W	cURus TUV	2400 RPM	Round	172 mm	122.1 Pa	0.49 in H2O	80 VAC	130 VAC	Ball	2 Wire Leads	4.76 m³/min	170 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-22-1WB	Aluminum	52 dB	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	230 VAC	51 mm	35 W	cURus TUV	3200 RPM	Round	172 mm	174.4 Pa	0.7 in H2O	160 VAC	260 VAC	Ball	2 Wire Leads	6.58 m³/min	235 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	1.2 kg	2.7 lbs
Orion Fans OA172AP-11-1WB1855	Aluminum	59 dB(A)					50000 Hrs	115 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O	100 VAC	120 VAC	Ball	2 Wire Leads	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant
Orion Fans OA172AP11-1TBXC	Aluminum	61 dB(A)	70 °C	70 °C	-40 °C	-40 °C	60000 Hrs	115 VAC	51 mm	50 W	cURus TUV	3300 RPM	Rectangular/Rounded		194.3 Pa	0.78 in H2O	100 VAC	125 VAC	Ball	2 Terminals	8.4 mł/min	300 CFM	Tubeaxial	Polybutylene Terephthalate (PBT)	997.9 g	2.2 lbs		150 mm	172 mm	Capacitor
Orion Fans OA172AP-11-1TB1855	Aluminum	59 dB(A)					50000 Hrs	115 VAC	51 mm	42 W		3200 RPM	Round	172 mm	127 Pa	0.51 in H2O	100 VAC	120 VAC	Ball	2 Terminals	6.02 mł/min	215 CFM	Tubeaxial	Metal	1.4 kg	3 lb	IP55 - Dust Protected Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 54.98
		12	$ 49.74
		36	$ 46.47
		60	$ 45.81
		108	$ 42.21
Newark	Each	1	$ 64.80
		1000	$ 59.40

Description

General part information

OA172AP Series

Fan Tubeaxial 230VAC Round - 172mm Dia Ball 235.0 CFM (6.58m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Miscellaneous EN

Datasheet
