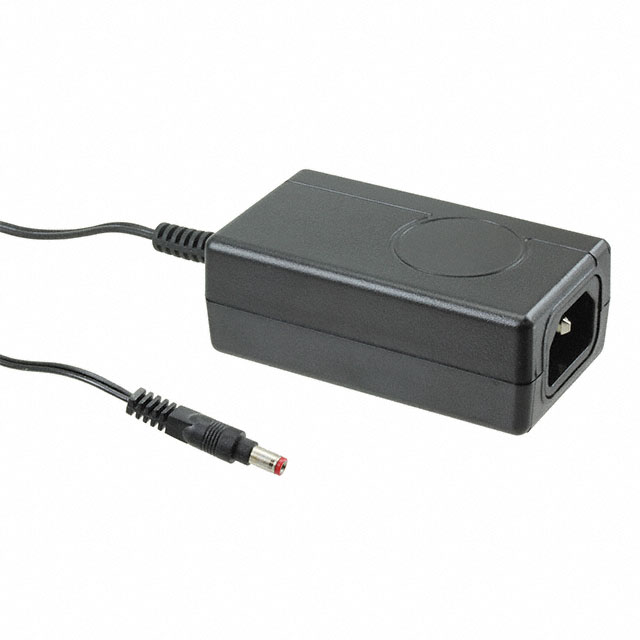

ME20A0903N01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 9V 18W
Deep-Dive with AI
Search across all available documentation for this part.
ME20A0903N01
ActiveSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER 9V 18W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ME20A0903N01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 18 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.31 " |
| Size / Dimension [x] | 84 mm |
| Size / Dimension [y] | 1.85 " |
| Size / Dimension [y] | 47 mm |
| Size / Dimension [z] | 1.22 in |
| Size / Dimension [z] | 31 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.12 | |
| 5 | $ 18.83 | |||
| 10 | $ 18.53 | |||
| 25 | $ 17.65 | |||
| 50 | $ 17.06 | |||
| 100 | $ 15.88 | |||
| 250 | $ 15.65 | |||
Description
General part information
ME20A0903 Series
9V 18 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
