SSB-CEL2417SUGC

Active

Lumex Opto/Components Inc.

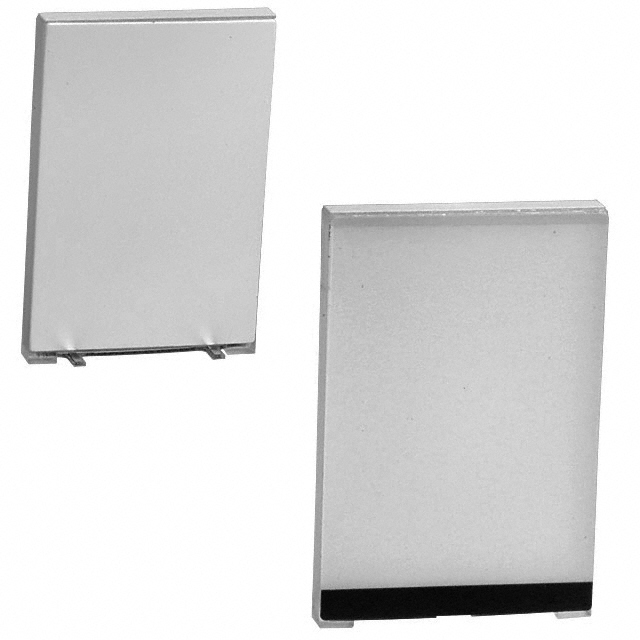

LED 30X20MM BACKLIGHT GRN 574NM

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 30X20MM BACKLIGHT GRN 574NM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED 30X20MM BACKLIGHT GRN 574NM

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SSB-CEL2417SUGC	SSB-CEL Series

	-	-
CCT (K)	574 nm	574 nm
Color	Green	White, Green
Current - Test	40 mA	40 - 240 mA
Operating Temperature [Max]	70 °C	70 - 85 C
Operating Temperature [Min]	-20 C	-40 - -20 ░C
Output	12 cd/m²	12 - 5000 cd/m²
Size / Dimension [x]	24 mm	23.97 - 156.9 mm
Size / Dimension [y]	18.4 mm	14.78 - 95 mm
Size / Dimension [z]	3 mm	3 - 6.5 mm
Style	Rectangular	Rectangular
Termination Style	Solder	PCB Pins, Solder, BHSR-02VS-1 JST Connector
Voltage - Forward (Vf) (Typ)	2.2 V	2.2 - 9.7 V

LED PANEL EDGELIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Test	Style	Termination Style	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Output	CCT (K)
Lumex Opto/Components Inc. SSB-CEL9168UWW
Lumex Opto/Components Inc. SSB-CEL2718UWW	-30 ░C	80 C	40 mA	Rectangular	PCB Pins	3.3 V	White	23.97 mm	3 mm	14.78 mm
Lumex Opto/Components Inc. SSB-CEL7172UWW	-40 °C	85 °C	140 mA	Rectangular	Solder	3.5 V	White	72 mm	3 mm	70.5 mm	230 cd/m²
Lumex Opto/Components Inc. SSB-CEL12795UWW	-40 °C	85 °C	200 mA	Rectangular	Solder	3.5 V	White	127.4 mm	4.1 mm	95 mm	350 cd/m²
Lumex Opto/Components Inc. SSB-CEL2417SUGC	-20 C	70 °C	40 mA	Rectangular	Solder	2.2 V	Green	24 mm	3 mm	18.4 mm	12 cd/m²	574 nm
Lumex Opto/Components Inc. SSB-CEL15890UWW-24	-20 C	70 °C	240 mA	Rectangular	BHSR-02VS-1 JST Connector	9.7 V	White	156.9 mm	6.5 mm	89.75 mm	5000 cd/m²
Lumex Opto/Components Inc. SSB-CEL8040UWW	-25 °C	85 °C		Rectangular	Solder	3.5 V	White	80 mm	3.3 mm	40 mm	140 cd/m²
