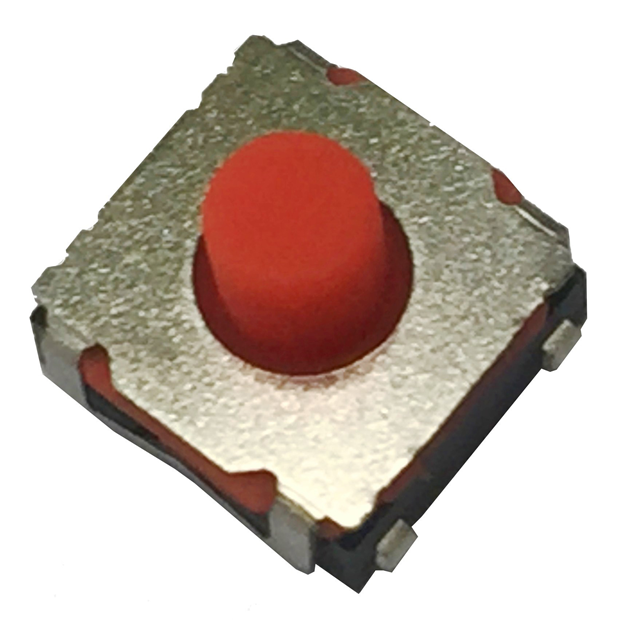

222KJVAAR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 32V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
222KJVAAR
ActiveCTS Electrocomponents
SWITCH TACTILE SPST-NO 0.05A 32V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 222KJVAAR | 222KJVA Series |
|---|---|---|
| Actuator Height off PCB, Vertical | 5.2 mm | 5.2 mm |
| Actuator Material | Silicone Rubber | Silicone Rubber |
| Actuator Orientation | Top Actuated | Top Actuated |
| Actuator Type | Standard | Standard |
| Circuit | SPST-NO | SPST-NO |
| Contact Rating @ Voltage | 0.05 A | 0.05 A |
| Features | Tactile Feedback | Tactile Feedback |
| Illumination | Non-Illuminated | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles | 300000 - 5000000 Cycles |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Force | 200 gf | 145 - 360 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outline [x] | 6.2 mm | 6.2 mm |
| Outline [y] | 6.2 mm | 6.2 mm |
| Switch Function | Off-Mom | Off-Mom |
| Switch Travel | - | 0.5 - 0.7 mm |
| Switch Travel [custom] | 0.6 mm | 0.6 mm |
| Termination Style | J Lead | J Lead |
222KJVA Series
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Circuit | Actuator Type | Mechanical Life | Actuator Material | Actuator Orientation | Switch Travel | Switch Function | Ingress Protection | Termination Style | Operating Force | Features | Illumination | Actuator Height off PCB, Vertical | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Rating @ Voltage | Outline [y] | Outline [x] | Switch Travel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CTS Electrocomponents 222KJVACR | SPST-NO | Standard | 300000 Cycles | Silicone Rubber | Top Actuated | 0.7 mm | Off-Mom | IP67 - Dust Tight, Waterproof | J Lead | 360 gf | Tactile Feedback | Non-Illuminated | 5.2 mm | 85 °C | -40 °C | Surface Mount | 0.05 A | 6.2 mm | 6.2 mm | |
CTS Electrocomponents 222KJVAAR | SPST-NO | Standard | 500000 Cycles | Silicone Rubber | Top Actuated | Off-Mom | IP67 - Dust Tight, Waterproof | J Lead | 200 gf | Tactile Feedback | Non-Illuminated | 5.2 mm | 85 °C | -40 °C | Surface Mount | 0.05 A | 6.2 mm | 6.2 mm | 0.6 mm | |
CTS Electrocomponents 222KJVABR | SPST-NO | Standard | 5000000 Cycles | Silicone Rubber | Top Actuated | 0.5 mm | Off-Mom | IP67 - Dust Tight, Waterproof | J Lead | 145 gf | Tactile Feedback | Non-Illuminated | 5.2 mm | 85 °C | -40 °C | Surface Mount | 0.05 A | 6.2 mm | 6.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.24 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.24 | ||
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.15 | |||
| 500 | $ 0.14 | |||
| Tape & Reel (TR) | 1000 | $ 0.13 | ||
| 2000 | $ 0.12 | |||
Description
General part information
222KJVA Series
Tactile Switch SPST-NO Top Actuated Surface Mount
