H3BBH-4006G

Active

Assmann WSW Components

IDC CBL - HHSR40H/AE40G/HHSR40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR40H/AE40G/HHSR40H

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Cable Termination	Contact Finish	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Shielding	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Positions	Features	Color	Length	Length	Length
Assmann WSW Components H3BBH-4036G	Socket to Socket	IDC	Gold	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded	2	15 µin	0.38 µm	0.05 "	1.27 mm	40	Strain Relief
Assmann WSW Components H3BBH-4036M	Socket to Socket	IDC	Gold	3 ft	914.4 mm	0.1 in	2.54 mm	Unshielded	2	15 µin	0.38 µm	0.05 "	1.27 mm	40	Strain Relief	Multiple Ribbon
Assmann WSW Components H3BBH-4006G	Socket to Socket	IDC	Gold			0.1 in	2.54 mm	Unshielded	2	15 µin	0.38 µm	0.05 "	1.27 mm	40	Strain Relief		152.4 mm	6 "	0.5 '
Assmann WSW Components H3BBH-4006M	Socket to Socket	IDC	Gold			0.1 in	2.54 mm	Unshielded	2	15 µin	0.38 µm	0.05 "	1.27 mm	40	Strain Relief	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3BBH-4018M	Socket to Socket	IDC	Gold	1.5 ft	457.2 mm	0.1 in	2.54 mm	Unshielded	2	15 µin	0.38 µm	0.05 "	1.27 mm	40	Strain Relief	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

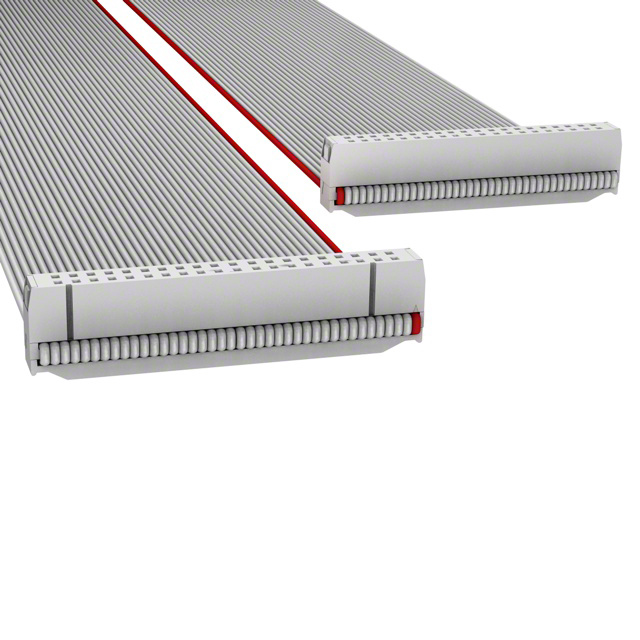

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
