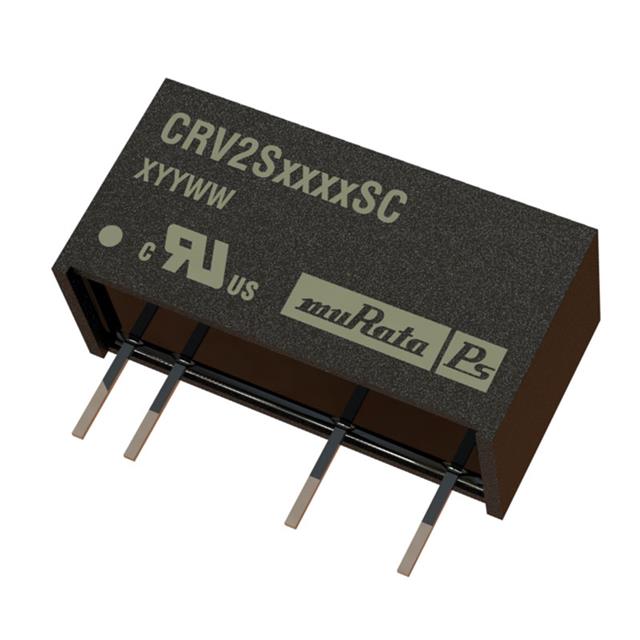

CRV2S0505SC
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 5V, 0.4A
Deep-Dive with AI
Search across all available documentation for this part.
CRV2S0505SC
ActiveMurata Power Solutions Inc.
DC-DC CONVERTER, 5V, 0.4A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CRV2S0505SC | CRV2S Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA | 400 mA |
| Efficiency | 83 % | 83 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-SIP Module, 4 Leads | 7-SIP Module, 4 Leads |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 0.77 in | 0.77 in |
| Size / Dimension [x] | 19.6 mm | 19.6 mm |
| Size / Dimension [y] | 0.3 " | 0.3 " |
| Size / Dimension [y] | 7.6 mm | 7.6 mm |
| Size / Dimension [z] | 0.39 in | 0.39 in |
| Size / Dimension [z] | 10 mm | 10 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CRV2S Series
DC-DC CONVERTER, 5V, 0.4A
| Part | Power (Watts) | Applications | Voltage - Isolation | Package / Case | Current - Output (Max) [Max] | Type | Voltage - Input (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. CRV2S0505SC | 2 W | ITE (Commercial) | 3000 V | 7-SIP Module, 4 Leads | 400 mA | Isolated Module | 5.5 V | Through Hole | 0.77 in | 0.39 in | 10 mm | 19.6 mm | 0.3 " | 7.6 mm | 1 | 5 V | 85 °C | -40 °C | 83 % | 4.5 V |
Murata Power Solutions Inc. CRV2S0505SC |
Description
General part information
CRV2S Series
Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
