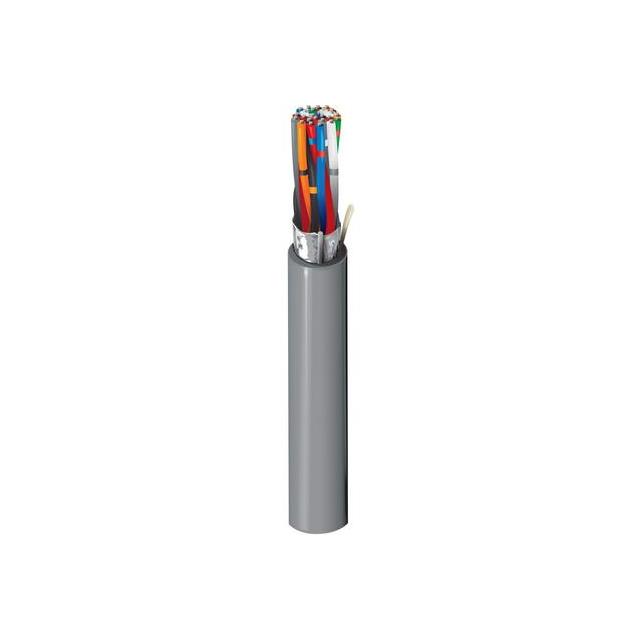

1424A 0601000

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 25COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1424A 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	10.62 mm
Jacket (Insulation) Diameter [diameter]	0.418 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

Part	Number of Conductors	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket Color	Ratings	Jacket (Insulation) Material	Usage	Shield Coverage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Length	Length	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge
Belden Inc. 1424A 0601000	25	Aluminum	32 AWG	7	0.889 mm	0.035 in	Multi-Pair	Chrome	UL Style 2919	Poly-Vinyl Chloride (PVC)	Computer	100 %	Foam Polyethylene (FPE)	10.62 mm	0.418 in	Foil	1000 ft	304.8 m	Drain Wire	-20 C	80 C	Copper Tinned	24 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.91

General part information

25 (12.5 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG Foil 1000.0' (304.8m)
