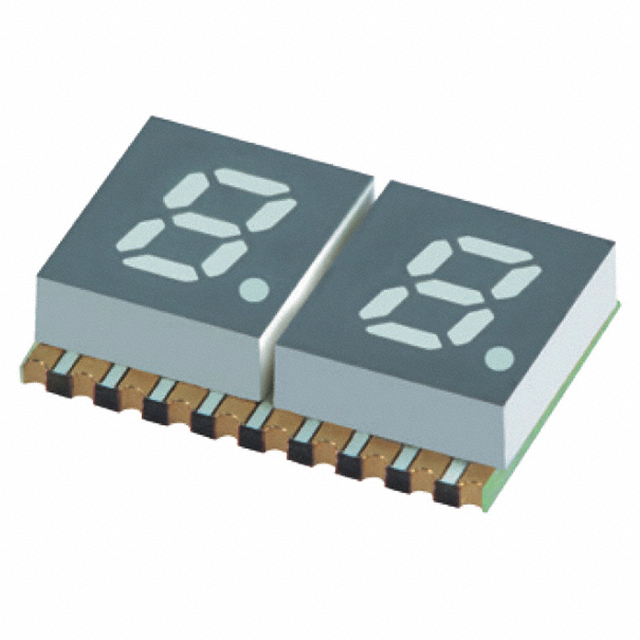

XZFBBA05A2

Obsolete

SunLED

DISPLAY 7SEG 0.2" DBL BLUE 20SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XZFBBA05A2

Obsolete

SunLED

DISPLAY 7SEG 0.2" DBL BLUE 20SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XZFBBA05A2

Color	Blue
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	5.08 mm
Digit/Alpha Size	0.2 in
Display Type	7-Segment
Millicandela Rating	4 mcd
Number of Characters	2
Package / Case	20-SMD, No Lead
Power Dissipation (Max) [Max]	120 mW
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	14.1 mm
Size / Dimension [y]	0.555 "
Size / Dimension [z]	3 mm
Size / Dimension [z]	0.118 "
Voltage - Forward (Vf) (Typ)	3.05 V
Wavelength - Peak	468 nm

XZFBBA05 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Package / Case	Current - Test	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Color	Common Pin	Number of Characters	Wavelength - Peak	Display Type	Number of Characters [custom]
SunLED XZFBBA05A2	14.1 mm	0.555 "	3 mm	0.394 "	10 mm	0.118 "	3.05 V	4 mcd	20-SMD No Lead	10 mA	120 mW	5.08 mm	0.2 in	Blue	Common Anode	2	468 nm	7-Segment
SunLED XZFBBA05C	6.9 mm	0.272 "	3 mm	0.394 "	10 mm	0.118 "	3.05 V	4 mcd	10-SMD No Lead	10 mA	120 mW	5.08 mm	0.2 in	Blue	Common Cathode		468 nm	7-Segment	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XZFBBA05 Series

Display Modules - LED Character and Numeric Blue 7-Segment 2 Character Common Anode 3.05V 10mA 0.394" H x 0.555" W x 0.118" D (10.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead
