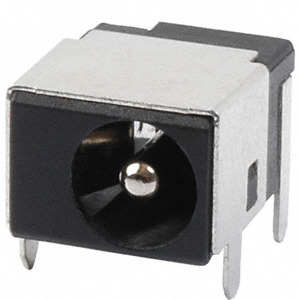

PJ-051AH

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-051AH

Actual Diameter [diameter]	0.236 ", 2 mm, 0.079 ", 6 mm
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Board Guide
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth [x]	8.2 mm
Mating Length/Depth [x]	0.323 in
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Termination	Solder
Voltage - Rated	24 VDC

Part	Gender	Actual Diameter [diameter]	Internal Switch(s)	Connector Type	Material Flammability Rating	Shielding	Current Rating (Amps)	Number of Positions/Contacts	Contact Material	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Rated	Housing Material	Termination	Body Color	Contact Material - Plating [custom]	Mating Length/Depth [x]	Mating Length/Depth [x]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]
CUI Devices PJ-051AH	Male	0.079 " 0.236 " 2 mm 6 mm	Normally Closed Single Switch	Jack	UL94 V-0	Shielded	5 A	2 Conductors 3 Conductors	Brass Copper Alloy	0.083 in 0.217 "	2.1 mm 5.5 mm	Board Guide	-25 °C	85 °C	Through Hole Right Angle	24 VDC	Polybutylene Terephthalate (PBT)	Solder	Black	Silver	8.2 mm	0.323 in
CUI Devices PJ-051BH	Male		Normally Closed Single Switch	Jack	UL94 V-0	Shielded	5 A	2 Conductors 3 Conductors	Brass Copper Alloy	0.098 " 0.217 "	2.5 mm 5.5 mm	Board Guide	-25 °C	85 °C	Through Hole Right Angle	24 VDC	Polybutylene Terephthalate (PBT)	Solder	Black	Silver	8.2 mm	0.323 in	2.5 mm	6 mm	0.236 in	0.098 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
