DBME-5W5S-A197

Active

ITT Cannon, LLC

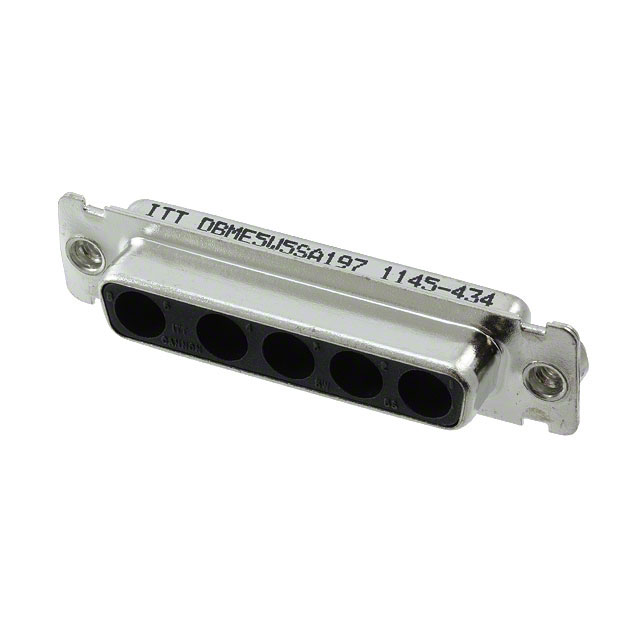

CONN D-SUB HOUSING RCPT 5POS

Deep-Dive with AI

Search across all available documentation for this part.

DBME-5W5S-A197

Active

ITT Cannon, LLC

CONN D-SUB HOUSING RCPT 5POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DBME-5W5S-A197

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Coax, Power
Dielectric Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Features	Shielded
Flange Feature	Cable Side
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3

DBME Series

Part	Flange Feature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows	Connector Type	Material Flammability Rating	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Dielectric Material	Shell Material, Finish	Contact Finish Thickness	Connector Style	Contact Material	Current Rating (Amps)	Shell Size, Connector Layout	Color	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout	Termination	Contact Type	Number of Positions [custom]	Mounting Type	Note	Number of Positions [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
ITT Cannon, LLC DBME17W2SA197	Cable Side	Shielded	-55 °C	125 °C	17	2	Receptacle Female Sockets	UL94 V-0	Gold	8 AWG	26 AWG	Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Tin-Nickel Plated	Flash	Combo D-Sub	Copper Alloy	7.5 A	17W2 3 (DB B)	Black
ITT Cannon, LLC DBME9W4SA197	4-40 Board Side	Shielded	-55 °C	125 °C	9	2	Receptacle Female Sockets	UL94 V-0	Gold			Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Tin-Nickel Plated		Combo D-Sub	Copper Alloy	7.5 A	3 (DB B) - 9W4	Black	4	5
ITT Cannon, LLC DBME13X3PJK87	4-40 Board Side	Grounding Indents Shielded	-55 °C	125 °C		2	Male Pins Plug	UL94 V-0	Gold			Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Tin-Nickel Plated	Flash	Combo D-Sub	Copper Alloy	5 A 7.5 A	13C3 13W3 B DB	Black		3	3	Solder	Coax Signal	10	Panel Mount Right Angle Through Hole
ITT Cannon, LLC DBME5W5P	Cable Side	Shielded	-55 °C	125 °C		1	Plug for Male Contacts					Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Yellow Chromate Plated Zinc		Combo D-Sub			5W5	Black			3		Coax Power			Contacts Not Included
ITT Cannon, LLC DBME13W3SA197	Cable Side	Shielded	-55 °C	125 °C	13	2	Receptacle Female Sockets	UL94 V-0	Gold	8 AWG	26 AWG	Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Tin-Nickel Plated	Flash	Combo D-Sub	Copper Alloy	7.5 A	13C3 13W3 B DB	Black			3			10			3
ITT Cannon, LLC DBME17W2PJ	4-40 Board Side	Shielded	-55 °C	125 °C	17	2	Male Pins Plug	UL94 V-0	Gold			Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Yellow Chromate Plated Zinc	Flash	Combo D-Sub	Copper Alloy	7.5 A	17W2 3 (DB B)	Black				Solder			Panel Mount Right Angle Through Hole
ITT Cannon, LLC DBME25SP	4-40 Board Side		-55 °C	125 °C		2	Receptacle Female Sockets	UL94 V-0	Gold			Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Yellow Chromate Plated Zinc		D-Sub	Copper Alloy	7.5 A		Black				Solder	Signal		Panel Mount Right Angle Through Hole			B DB	3
ITT Cannon, LLC DBME-5W5S-A197	Cable Side	Shielded	-55 °C	125 °C		1	Receptacle for Female Contacts					Polycyclohexylenedimethylene Terephthalate (PCT)			Combo D-Sub			5W5	Black			3		Coax Power			Contacts Not Included
ITT Cannon, LLC DBME5H5PNK87	4-40 Board Side	Grounding Indents Shielded	-55 °C	125 °C		1	Male Pins Plug	UL94 V-0	Gold			Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Tin-Nickel Plated	Flash	Combo D-Sub	Copper Alloy	40 A	5W5	Black	5		3	Solder	Power		Panel Mount Through Hole
ITT Cannon, LLC DBME9W4S	Cable Side	Shielded	-55 °C	125 °C	9	2	Receptacle Female Sockets	UL94 V-0	Gold	8 AWG	26 AWG	Polycyclohexylenedimethylene Terephthalate (PCT)	Steel Yellow Chromate Plated Zinc	Flash	Combo D-Sub	Copper Alloy	7.5 A	3 (DB B) - 9W4	Black	4	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.09
		10	$ 13.15
		25	$ 11.89
		56	$ 10.91
		112	$ 10.16
		280	$ 9.26
		504	$ 8.75
		1008	$ 8.22

Description

General part information

DBME Series

Receptacle for Female Contacts Housing D-Sub, Combo Connector 5 (Coax or Power) Position

Documents

Technical documentation and resources

No documents available
