DSTL-0829-24
ActiveDelta Electronics

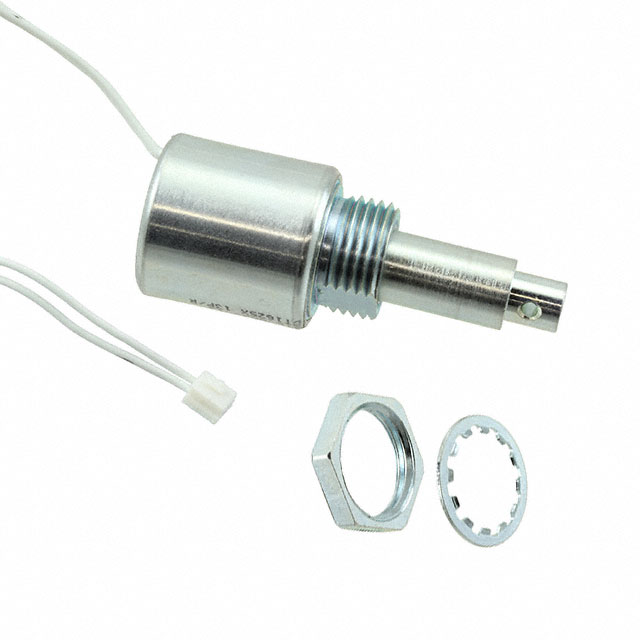

LINEAR SOLENOID, TUBULAR, 24V, 76 W, 7.5 OHM, 25.4MM D X 28.956MM L, DSTL SERIES, INTERMITTENT, PULL
Deep-Dive with AI
Search across all available documentation for this part.
DSTL-0829-24
ActiveDelta Electronics
LINEAR SOLENOID, TUBULAR, 24V, 76 W, 7.5 OHM, 25.4MM D X 28.956MM L, DSTL SERIES, INTERMITTENT, PULL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSTL-0829-24 |
|---|---|
| Bushing Thread | 3/4-16 UNF-2A |
| DC Resistance (DCR) | 7.5 Ohm |
| Diameter - Shaft [diameter] | 7.8 mm |
| Diameter - Shaft [diameter] | 0.307 in |
| Duty Cycle | 10 sec, 10 % |
| Mounting Type | Chassis Mount |
| Power (Watts) | 76 W |
| Shaft Detail | Clevis |
| Size / Dimension [diameter] | 0.961 in |
| Size / Dimension [diameter] | 24.4 mm |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [x] | 29 mm |
| Stroke Length | 0.5 in |
| Stroke Length | 12.7 mm |
| Technology | Electromechanical |
| Type | Closed Frame (Pull), Tubular |
| Voltage - Rated | 24 VDC |
| Weight | 0.225 lb |
| Weight | 102.06 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 192 | $ 23.17 | |
Description
General part information
DSTL-0829 Series
10%, 10sec On Max Duty Solenoid Closed Frame (Pull), Tubular Type 0.500" (12.70mm) Stroke 24VDC Chassis Mount
