HST-18-BK-4
ActiveAdam Tech
HEAT SHRINK 14MM DIA BLACK 4' 2:
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HST-18-BK-4
ActiveAdam Tech
HEAT SHRINK 14MM DIA BLACK 4' 2:
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HST-18-BK-4 |
|---|---|
| Color | Black |
| Features | Flame Retardant |
| Inner Diameter - Recovered [diameter] | 7.01 mm |
| Inner Diameter - Recovered [diameter] | 0.276 in |
| Inner Diameter - Supplied [diameter] | 14.7 mm |
| Inner Diameter - Supplied [diameter] | 0.579 in |
| Length [x] | 1.22 m |
| Length [x] | 4 ft |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.027 " |
| Recovered Wall Thickness | 0.69 mm |
| Shrinkage Ratio | 2 to 1 |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 81 | $ 0.71 | |
| 162 | $ 0.65 | |||
| 243 | $ 0.62 | |||
| 405 | $ 0.58 | |||
| 567 | $ 0.56 | |||
| 810 | $ 0.55 | |||
Description
General part information
HST-18 Series

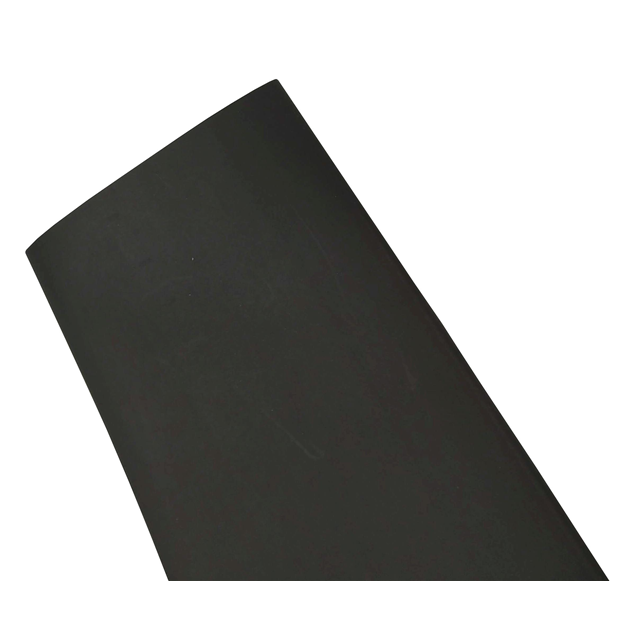

Heat Shrink Tubing, Flexible 0.579" (14.70mm) 2 to 1 Black 4.00' (1.22m)
Documents
Technical documentation and resources
