H3BKH-1418G

Active

Assmann WSW Components

IDC CBL - HHSR14H/AE14G/HHPK14H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR14H/AE14G/HHPK14H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BKH-1418G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Strain Relief (Socket)
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	14
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Connector Type	Features	Length [x]	Length [x]	Cable Termination	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Length	Length	Length
Assmann WSW Components H3BKH-1418G	Socket to Plug	Polarizing Key (Plug) Strain Relief (Socket)	457.2 mm	1.5 ft	IDC	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	14
Assmann WSW Components H3BKH-1418M	Socket to Plug	Polarizing Key (Plug) Strain Relief (Socket)	457.2 mm	1.5 ft	IDC	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	14	Multiple Ribbon
Assmann WSW Components H3BKH-1406M	Socket to Plug	Polarizing Key (Plug) Strain Relief (Socket)			IDC	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	14	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3BKH-1436G	Socket to Plug	Polarizing Key (Plug) Strain Relief (Socket)	914.4 mm	3 ft	IDC	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	Unshielded	15 µin	0.38 µm	14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

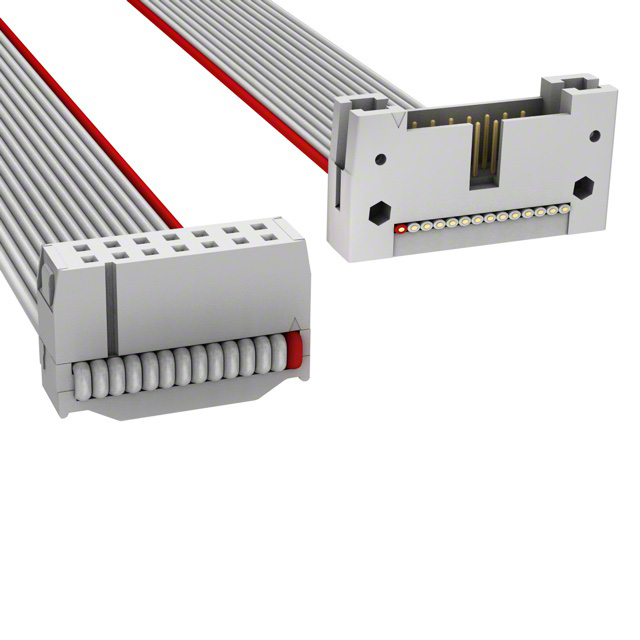

14 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
