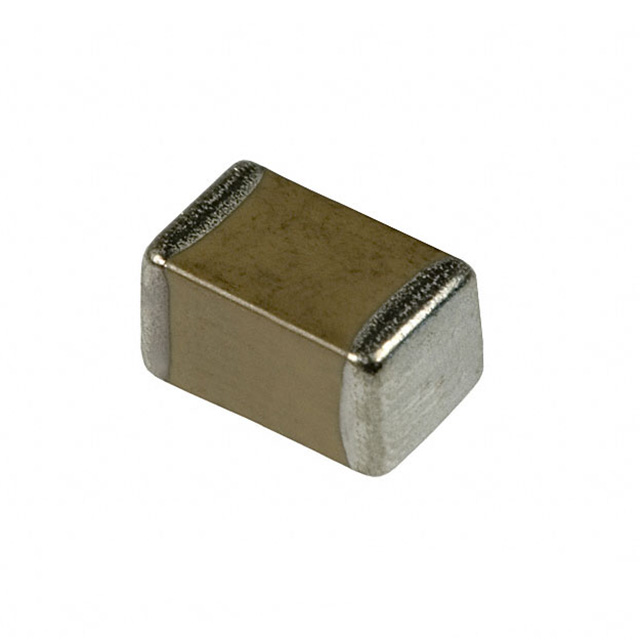

VJ0402Y273MXQCW1BC

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.027UF 10V X7R 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMLCC Capacitor Selector Guide Datasheet +1

VJ0402Y273MXQCW1BC

Active

Vishay General Semiconductor - Diodes Division

CAP CER 0.027UF 10V X7R 0402

Deep-Dive with AI

DocumentsMLCC Capacitor Selector Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VJ0402Y273MXQCW1BC

Applications	General Purpose
Capacitance	0.027 µF
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.022 in
Thickness (Max) [Max]	0.55 mm
Tolerance	20 %
Voltage - Rated	10 V

VJ0402 Series

...

Part	Capacitance	Mounting Type	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features	Tolerance	Voltage - Rated	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max)	Voltage - Rated [custom]
Vishay General Semiconductor - Diodes Division VJ0402A820JEAAI	82 pF	Epoxy MLCC Surface Mount	C0G NP0	-55 °C	150 °C	0402 (1005 Metric)	Epoxy Mountable	5 %	50 VDC	General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.024 in	0.6 mm
Vishay General Semiconductor - Diodes Division VJ0402D390FXXAC	39 pF	MLCC Surface Mount	C0G NP0	-55 °C	125 °C	0402 (1005 Metric)	High Q Low Loss	1 %	25 VDC	High Frequency Microwave RF	1.02 mm	0.02 in	0.51 mm	0.04 "			0.024 in	0.61 mm
Vishay General Semiconductor - Diodes Division VJ0402D120JXCAJ	12 pF	MLCC Surface Mount	C0G NP0	-55 °C	125 °C	0402 (1005 Metric)	High Q Low Loss	5 %	200 V	High Frequency Microwave RF	1.02 mm	0.02 in	0.51 mm	0.04 "			0.024 in	0.61 mm
Vishay General Semiconductor - Diodes Division VJ0402D750KXXAJ	75 pF	MLCC Surface Mount	C0G NP0	-55 °C	125 °C	0402 (1005 Metric)	High Q Low Loss	10 %	25 VDC	High Frequency Microwave RF	1.02 mm	0.02 in	0.51 mm	0.04 "			0.024 in	0.61 mm
Vishay General Semiconductor - Diodes Division VJ0402A101JXJCW1BC	100 pF	MLCC Surface Mount	C0G NP0	-55 °C	125 °C	0402 (1005 Metric)		5 %		General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.55 mm		0.022 in		16 V
Vishay General Semiconductor - Diodes Division VJ0402D270KXXAJ	27 pF	MLCC Surface Mount	C0G NP0	-55 °C	125 °C	0402 (1005 Metric)	High Q Low Loss	10 %	25 VDC	High Frequency Microwave RF	1.02 mm	0.02 in	0.51 mm	0.04 "			0.024 in	0.61 mm
Vishay General Semiconductor - Diodes Division VJ0402Y472JXQPW1BC	4700 pF	MLCC Surface Mount	X7R	-55 °C	125 °C	0402 (1005 Metric)		5 %	10 V	General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.55 mm		0.022 in
Vishay General Semiconductor - Diodes Division VJ0402Y273MXQCW1BC	0.027 µF	MLCC Surface Mount	X7R	-55 °C	125 °C	0402 (1005 Metric)		20 %	10 V	General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.55 mm		0.022 in
Vishay General Semiconductor - Diodes Division VJ0402Y332KXQCW1BC	3300 pF	MLCC Surface Mount	X7R	-55 °C	125 °C	0402 (1005 Metric)		10 %	10 V	General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.55 mm		0.022 in
Vishay General Semiconductor - Diodes Division VJ0402Y182MXQPW1BC	1800 pF	MLCC Surface Mount	X7R	-55 °C	125 °C	0402 (1005 Metric)		20 %	10 V	General Purpose	1 mm	0.02 in	0.5 mm	0.039 in	0.55 mm		0.022 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.02

Description

General part information

VJ0402 Series

0.027 µF ±20% 10V Ceramic Capacitor X7R 0402 (1005 Metric)

Documents

Technical documentation and resources

MLCC Capacitor Selector Guide

Datasheet

VJ...W1BC Soldering, Footprint Design

Datasheet
