25078 BK199

Active

ALPHA WIRE

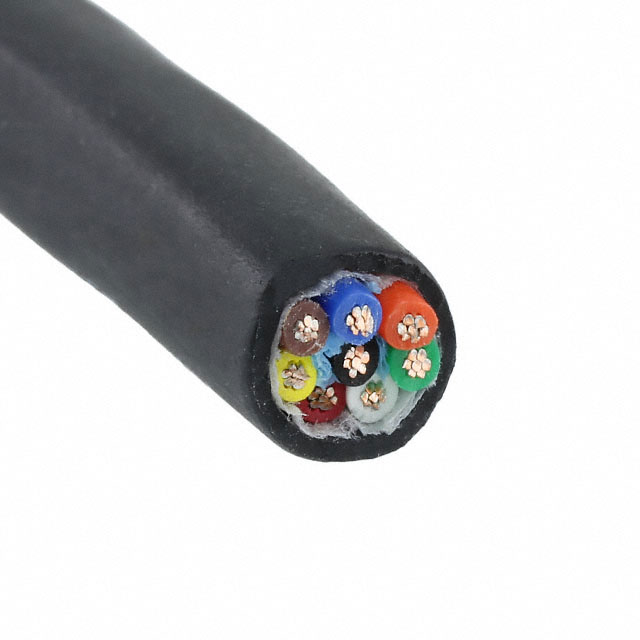

CABLE 8COND 16AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 16AWG BLACK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25078 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	16 AWG

CABLE 8COND 16AWG BLACK 1000'

Part	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length	Conductor Material	Ratings
ALPHA WIRE 25078 BK199	16 AWG	300 V	9.45 mm	0.372 in	Polyurethane (PU)	Biological Compatibility, Rip Cord	-30 ░C	90 °C	Black	Poly-Vinyl Chloride (PVC)	8	19	0.0117 in	Multi-Conductor	1000 ft	304.8 m	Copper, Tinned	ISO 10993, UL Style 20668

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 11.32

General part information

8 Conductor Multi-Conductor Cable Black 16 AWG 1000.0' (304.8m)
