Q-1V01R000R1.5M

Active

Amphenol Custom Cable

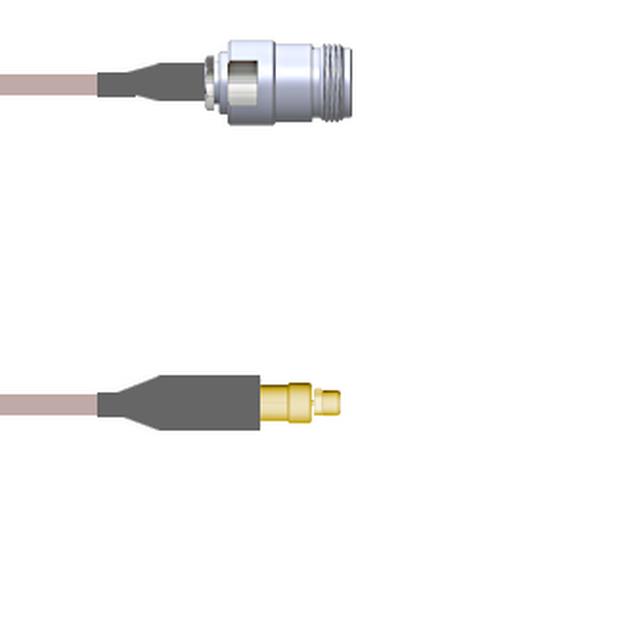

CBL ASSY MMCX-NTYPE PLG-JCK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V01R000R1.5M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE PLG-JCK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V01R000R1.5M

1st Connector	MMCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-1V01R0 Series

Part	Length	Length	Style	1st Connector Mounting Type	Cable Type	Features	Color	2nd Contact Gender	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	1st Connector	Length
Amphenol Custom Cable Q-1V01R000R0.5M	50 cm	19.69 "	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug
Amphenol Custom Cable Q-1V01R000R024i	609.6 mm	24 "	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug
Amphenol Custom Cable Q-1V01R000R2.5M	2.5 m	98.4 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	8.2 '
Amphenol Custom Cable Q-1V01R000R072i	1.8 m	72 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	6 ft
Amphenol Custom Cable Q-1V01R000R048i	1200 mm	48 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	4 ft
Amphenol Custom Cable Q-1V01R000R1.5M	1.5 m	59.1 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	4.9 ft
Amphenol Custom Cable Q-1V01R000R009i	228.6 mm	9 "	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug
Amphenol Custom Cable Q-1V01R000R006i	152.4 mm	6 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug
Amphenol Custom Cable Q-1V01R000R003M	3 m	118.1 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	9.8 '
Amphenol Custom Cable Q-1V01R000R001M	1 m	39.4 in	MMCX to N-Type	Free Hanging (In-Line)	RG-316 DB	Shielded	Copper	Female	N-Type Jack	6000 MHz	Free Hanging (In-Line)	Male	50 Ohms	MMCX Plug	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 222.92
		25	$ 207.32
		50	$ 191.72
		100	$ 178.34
		250	$ 167.19

Description

General part information

Q-1V01R0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
