WBNCSAC31-2OZ

Active

SRA Soldering Products

LEAD FREE NO-CLEAN FLUX CORE SIL

Search across all available documentation for this part.

Active

SRA Soldering Products

LEAD FREE NO-CLEAN FLUX CORE SIL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 13.50

General part information

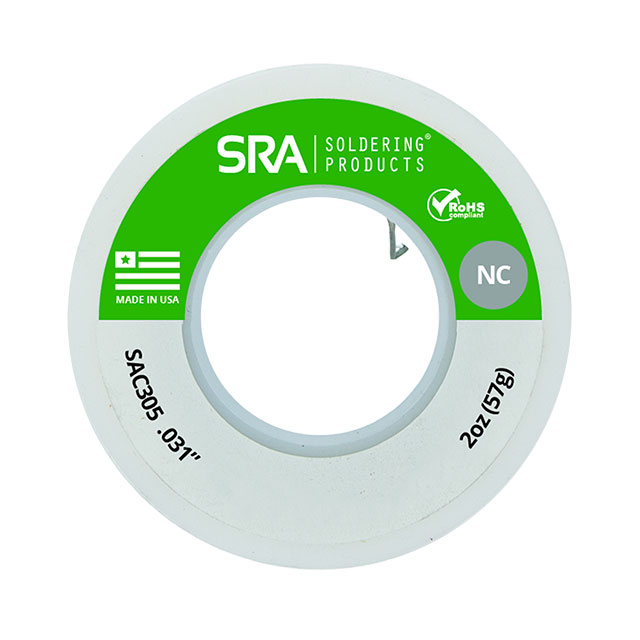

Lead Free No-Clean Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 20 AWG, 21 SWG Spool, 2 oz (56.70g)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LEAD FREE NO-CLEAN FLUX CORE SIL

Part	Form	Wire Gauge	Type	Melting Point [custom]	Melting Point [custom]	Composition	Diameter [diameter]	Diameter [diameter]	Flux Type	Form	Form
SRA Soldering Products WBNCSAC20	Spool, 1 lb (454 g)	24 AWG, 25 mmý	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	0.51 mm	0.02 in	No-Clean
SRA Soldering Products WBNCSAC31-4OZ	Spool	20 AWG, 21 SWG	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)			No-Clean	4 oz	113.4 g
SRA Soldering Products WBNCSAC31-2OZ	Spool	20 AWG, 21 SWG	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)			No-Clean	2 oz	56.7 g
SRA Soldering Products WBNCSAC20-2OZ	Spool	24 AWG, 25 mmý	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	0.51 mm	0.02 in	No-Clean	2 oz	56.7 g
SRA Soldering Products WBNCSAC31-35G		24 AWG, 25 mmý	Wire Solder			Sn96.5Ag3Cu0.5 (96.5/3/0.5)			No-Clean
SRA Soldering Products WBNCSAC20-4OZ	Spool	24 AWG, 25 mmý	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	0.51 mm	0.02 in	No-Clean	4 oz	113.4 g
SRA Soldering Products WBNCSAC32	Spool, 1 lb (454 g)	20 AWG, 21 SWG	Wire Solder	221 °C	430 °F	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	0.81 mm	0.032 in	No-Clean
