R164286000

Active

Radiall USA, Inc.

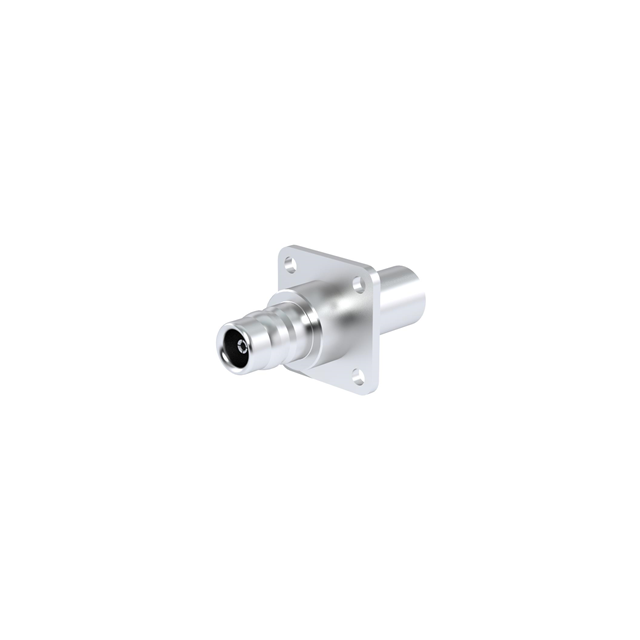

QN / STRAIGHT SQUARE FLANGE JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / STRAIGHT SQUARE FLANGE JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R164286000

Body Finish	White Bronze
Body Material	Brass
Cable Group [custom]	213
Cable Group [custom]	RG-165
Center Contact Material	Beryllium Copper
Connector Style	QN
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Housing Color	Center Contact Material	Frequency - Max [Max]	Contact Termination	Connector Type	Body Finish	Number of Ports	Impedance	Cable Group [custom]	Cable Group [custom]	Ingress Protection	Shield Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Feature	Connector Style	Body Material	Dielectric Material
Radiall USA, Inc. R164286000	Silver	Beryllium Copper	6000 MHz	Crimp	Female Socket Jack	White Bronze	1	50 Ohms	213	RG-165	IP68 - Dust Tight Waterproof	Crimp	Snap-On	-55 °C	125 °C	1000 VDC	Flange	QN	Brass	Polytetrafluoroethylene (PTFE)
