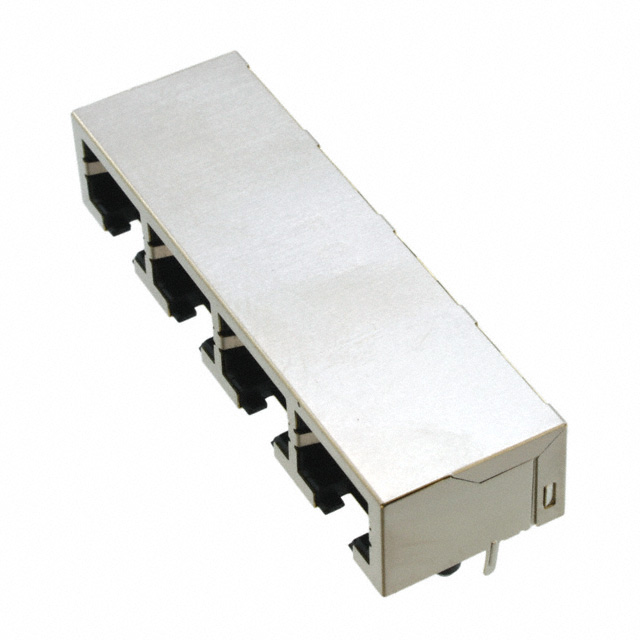

10118065-5005310LF

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 10P8C R/A SHIELDED

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN MOD JACK 10P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	10118065-5005310LF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	4
Number of Positions/Contacts [custom]	8
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat3
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Housing Material	Contact Finish	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ratings	Contact Finish Thickness	Number of Rows	Termination	Tab Direction	Connector Type	Orientation	LED Color	Contact Material
Amphenol ICC (FCI) 10118065-5005310LF	Thermoplastic	Gold	8	10	Shielded EMI Finger	4	85 °C	-40 °C	Through Hole	Cat3	Flash	1	Solder	Down	Jack	90 °	Does Not Contain LED	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Jack Modular Connector 10p8c 90° Angle (Right) Shielded, EMI Finger Cat3

Technical documentation and resources

No documents available
