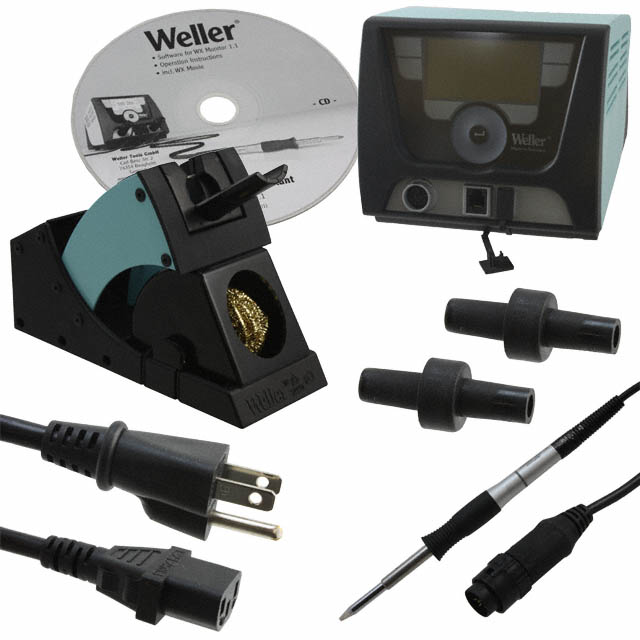

WX1010N

Active

Apex Tool Group

SOLDERING STATION 200W 1 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 200W 1 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WX1010N

Base Unit	WX1
Control/Display Type	Digital
Features	USB Port, LCD Display, Auto Off, Touch Screen, ESD Safe
Includes	Iron Holder
Number of Channels	1
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	WXP120 (2)
Supplied Tips/Nozzles	XTB
Temperature Range [Max]	454 °C, 850 °F
Temperature Range [Min]	66 °C, 150 °F
Tip Cleaner	Scouring Pad
Type	Soldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	200 W
Workstand	WDH10

SOLDERING STATION 200W 1 CH 120V

Part	Supplied Tips/Nozzles	Includes	Plug Type	Features	Type	Number of Channels	Supplied Iron, Tweezer, Handle	Voltage - Input	Voltage - Output	Workstand	Tip Cleaner	Control/Display Type	Wattage	Base Unit	Temperature Range [Min]	Temperature Range [Max]
Apex Tool Group WX1010N	XTB	Iron Holder	NEMA 5-15	Auto Off, ESD Safe, LCD Display, Touch Screen, USB Port	Soldering	1	WXP120 (2)	120 V	24 V	WDH10	Scouring Pad	Digital	200 W	WX1	66 °C, 150 °F	454 °C, 850 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 900.00

General part information

SOLDERING STATION 200W 1 CH 120V
